2006 Cadillac SRX RWD V6-3.6L VIN 7FACTORY OEM SERVICE PROCEDURE
Control Module HVAC: Service and Repair
BLOWER MOTOR CONTROL PROCESSOR REPLACEMENT
REMOVAL PROCEDURE
1. Remove the right sound insulator.

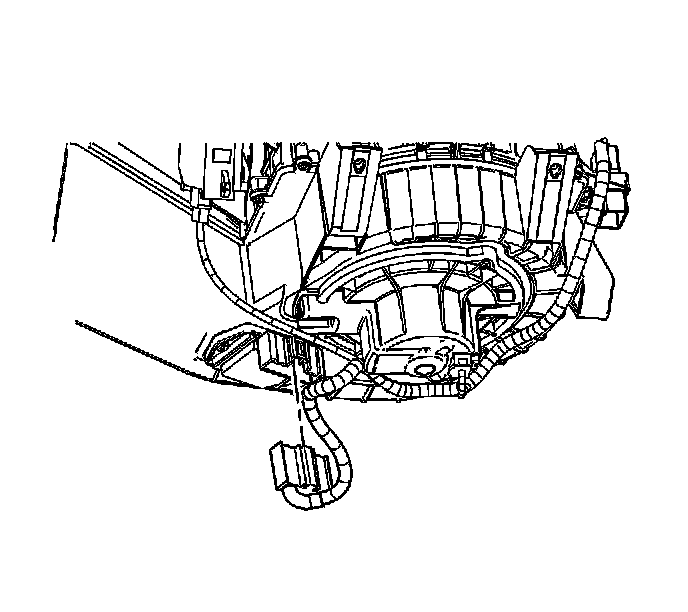

2. Disconnect the electrical connector from the blower motor control processor.

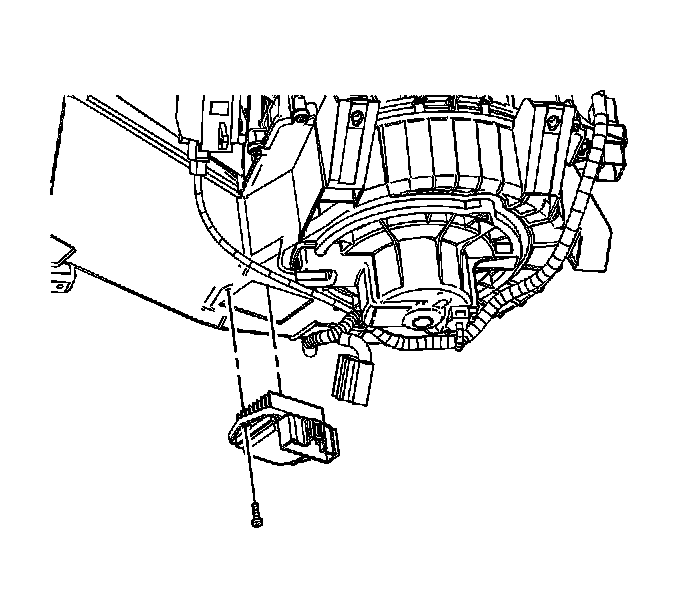

3. Remove the blower motor control processor retaining screw.
4. Remove the blower motor control processor from the vehicle.
INSTALLATION PROCEDURE
1. Install the blower motor control processor.
2. Install the blower motor control processor retaining screw.
Tighten the screw to 1 N.m (9 lb in).
NOTE: Refer to Fastener Notice in Service Precautions.
3. Connect the electrical connector to the blower motor control processor.
4. Install the right sound insulator.
