2006 Cadillac SRX RWD V6-3.6L VIN 7FACTORY OEM SERVICE PROCEDURE
Body Control Module Replacement
BODY CONTROL MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) compartment.

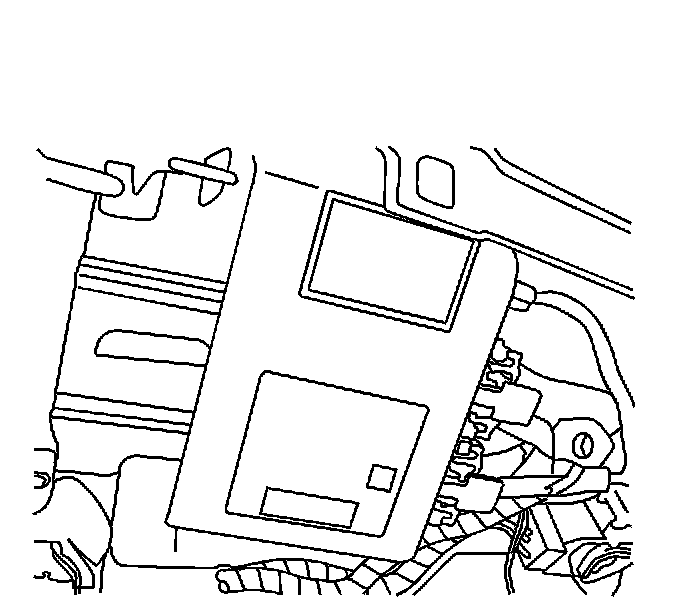

2. Release the tabs securing the dash integration module (DIM) to the bracket.
3. Disconnect the electrical connectors.
4. Remove the module.
INSTALLATION PROCEDURE
1. Connect the electrical connectors to the DIM.
2. Locate the DIM to the bracket on the I/P.
3. Push the DIM in order to lock the bracket retainers.
4. Install the I/P compartment.
5. Reprogram the DIM. Refer to Control Module References. Programming and Relearning
