2006 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

Removal Procedure

    Fig 1: View Of Rear Object Sensor Electrical Connectors
    GM489061Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the electrical connectors to the rear object sensor.
    2. Fig 2: View Of Rear Object Sensor Assembly
    GM500502Courtesy of GENERAL MOTORS CORP.
  2. Lift the locking tabs on the housing (4) and remove the rear object sensor (1).

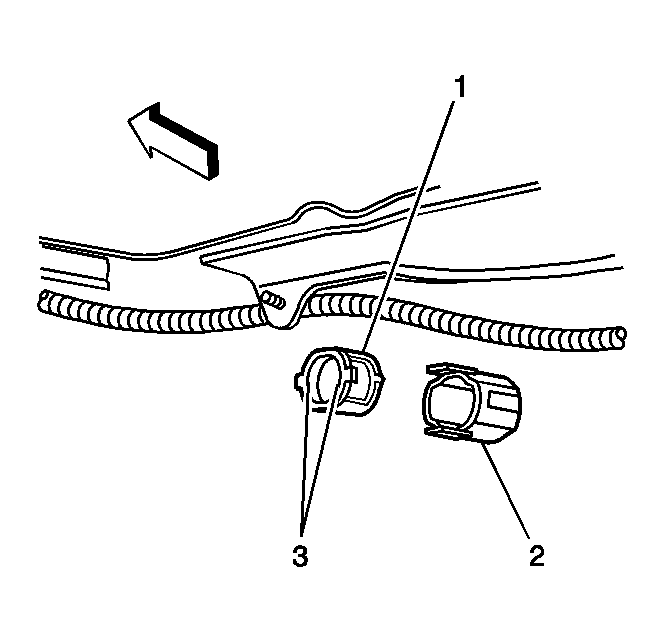

    3. Fig 3: Removing Rear Object Sensor Spring
    GM762443Courtesy of GENERAL MOTORS CORP.
  3. Insert a small size screw driver at (3) to release the tabs in order to remove the spring (1).
    4. Fig 4: View Of Rear Object Sensor Housing
    GM489064Courtesy of GENERAL MOTORS CORP.
  4. From the inside of the housing push in the tabs and remove.
    5. Fig 5: Painting Rear Object Sensor Bezel
    GM489066Courtesy of GENERAL MOTORS CORP.
  5. Remove the bezel by pushing it through the fascia.
