2006 Cadillac CTS VFACTORY OEM SERVICE PROCEDURE
Automatic Transmission Shift Lock Control Component Views

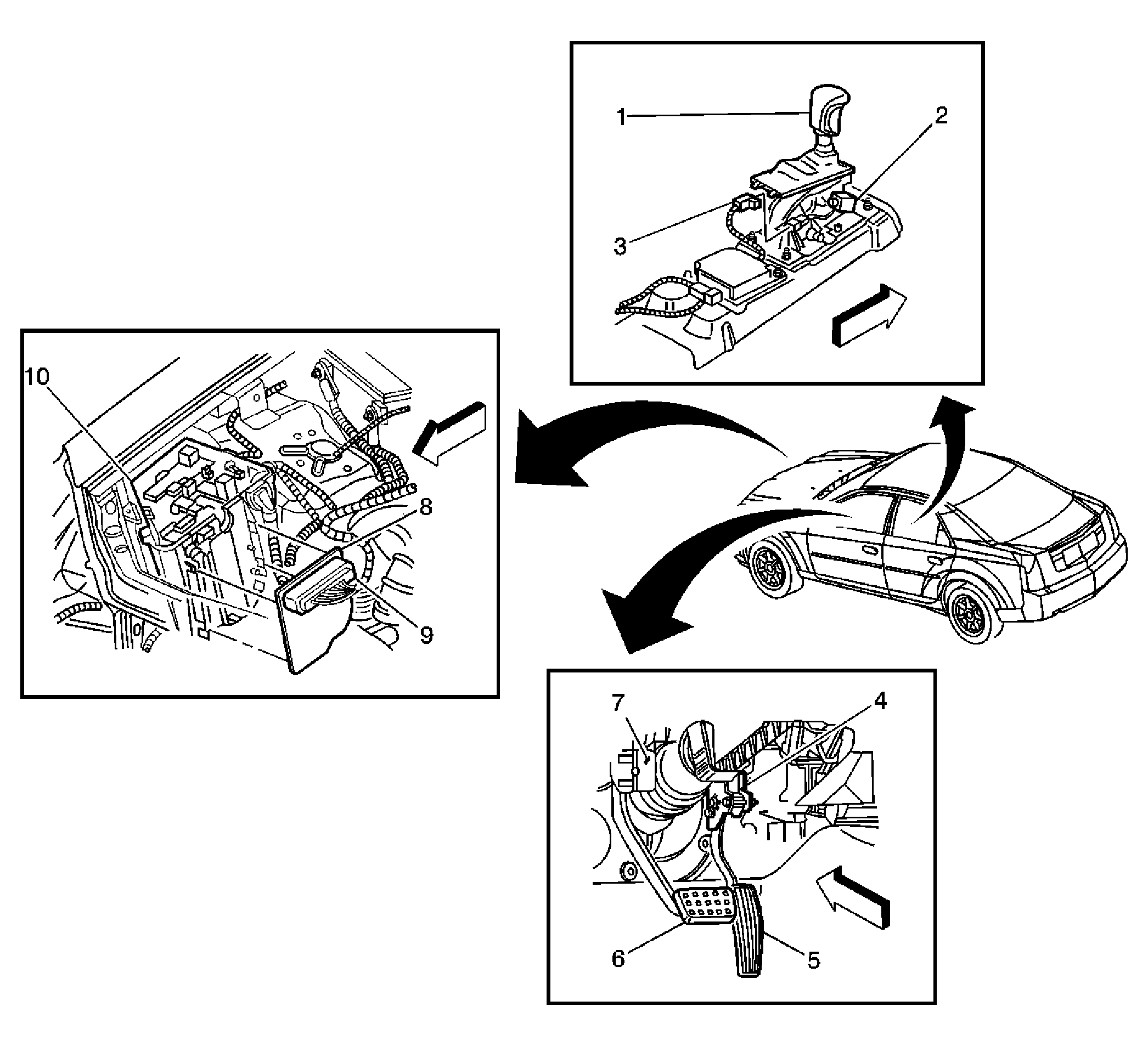

| Callout | Component Name |
|---|---|
| 1 | A/T Shift Control Assembly |
| 2 | A/T Shift Lock Control Solenoid Assembly |
| 3 | A/T Shift Lock Control Solenoid Assembly Connector |
| 4 | Accelerator Pedal Position (APP) Sensor |
| 5 | Accelerator Pedal |
| 6 | Brake Pedal |
| 7 | Brake Pedal Position (BPP) Sensor |
| 8 | Transmission Control Module (TCM) |
| 9 | Transmission Control Module (TCM) Connector |
| 10 | Fuse Block - Underhood |

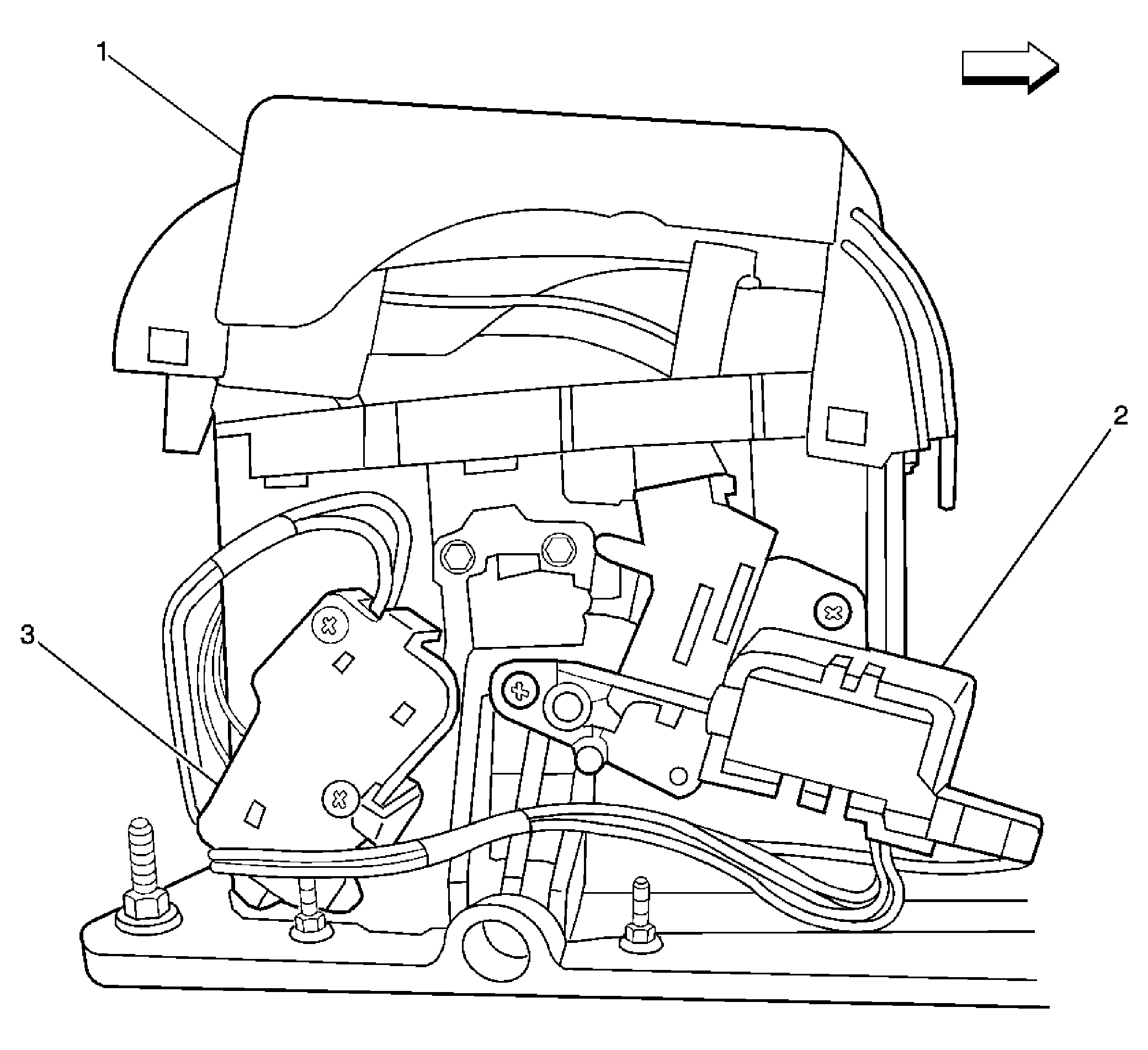

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Shift Lever |
| 1 | A/T Shift Lock Control Solenoid |
| 2 | Tap Up/Tap Down Switch |
