2005 Cadillac XLRFACTORY OEM SERVICE PROCEDURE

Removal Procedure

    CAUTION: Refer to SIR Caution in Cautions and Notices.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
    2. CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  3. Remove the steering wheel. Refer to Steering Wheel Replacement .
  4. Remove the knee bolster. Refer to Trim Panel Replacement - Knee Bolster in Instrument Panel, Gages, and Console.

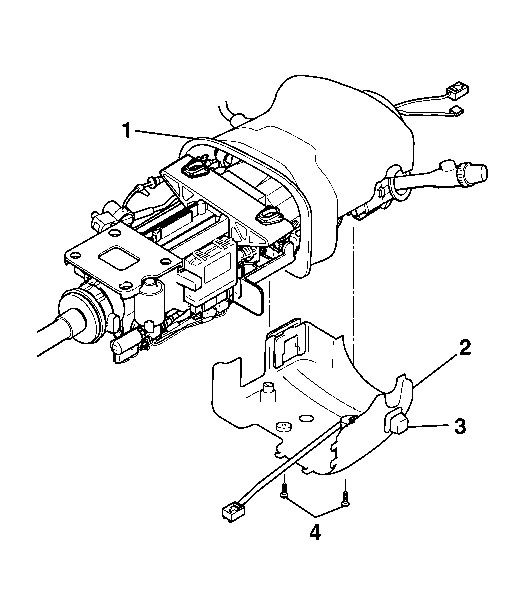

    5. Fig 1: View Of Closeout Shroud, Lower Steering Column Trim Cover & Retaining Screws
    GM588300Courtesy of GENERAL MOTORS CORP.
  5. Remove the retaining screws (4) from the lower steering column trim cover.
  6. Disconnect the closeout shroud from the lower trim cover.
    7. NOTE: Avoid damaging the steering column electronic lock harness by gently removing the plugs installed in the I/P beam. Do NOT twist, pull, bend, cut, or incorrectly route the harness. Damage to the harness will require replacement of the entire electronic lock.
  7. Disconnect the electrical connector for the power tilt and telescopic switch.
  8. Remove the electrical connector for the telescopic switch from the lower trim cover.

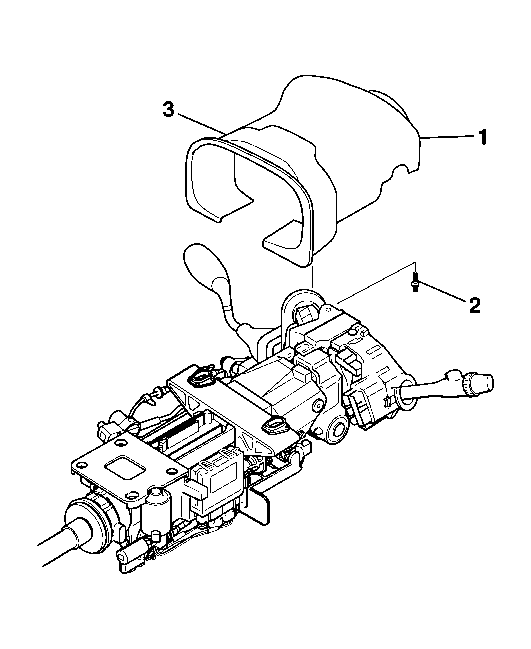

    9. Fig 2: View Of Upper Steering Column Trim Cover & Screws
    GM588304Courtesy of GENERAL MOTORS CORP.
  9. Remove the retaining screw (2) from the upper steering column trim cover (1).

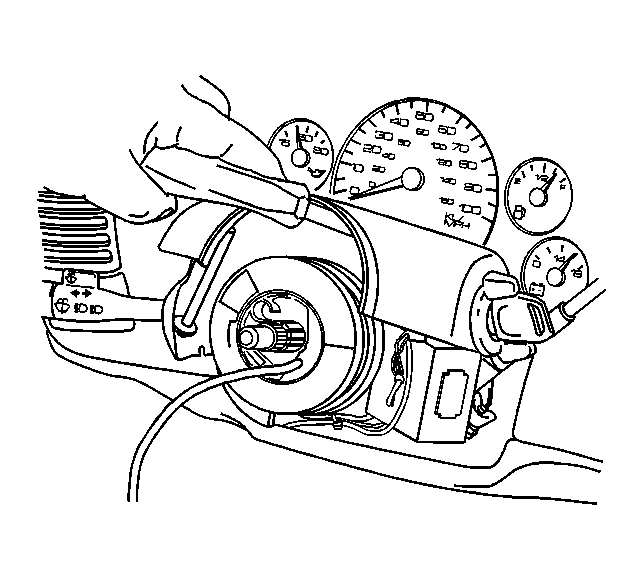

    10. Fig 3: View of Lock Cylinder Access Hole
    GM375310Courtesy of GENERAL MOTORS CORP.
  10. Lift the upper trim cover to gain access to the lock cylinder access hole.
  11. Using a bent tip awl, insert the tip into the access hole.

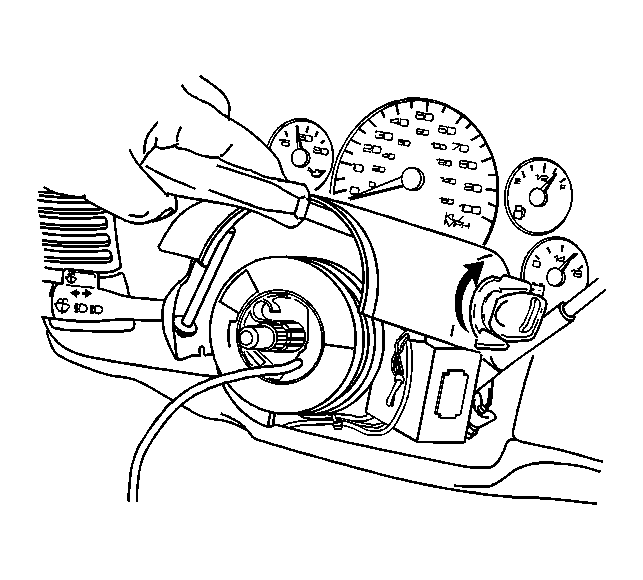

    12. Fig 4: View of Ignition Lock Cylinder
    GM375316Courtesy of GENERAL MOTORS CORP.
  12. Turn the ignition lock cylinder to the START position.
  13. Using the bent tip awl push down on the ignition lock cylinder retaining pin.
  14. Release the ignition lock cylinder to the RUN position and remove the lock cylinder.
  15. Remove the upper trim cover.
  16. Remove the closeout shroud from the upper trim cover.
