Installation Procedure

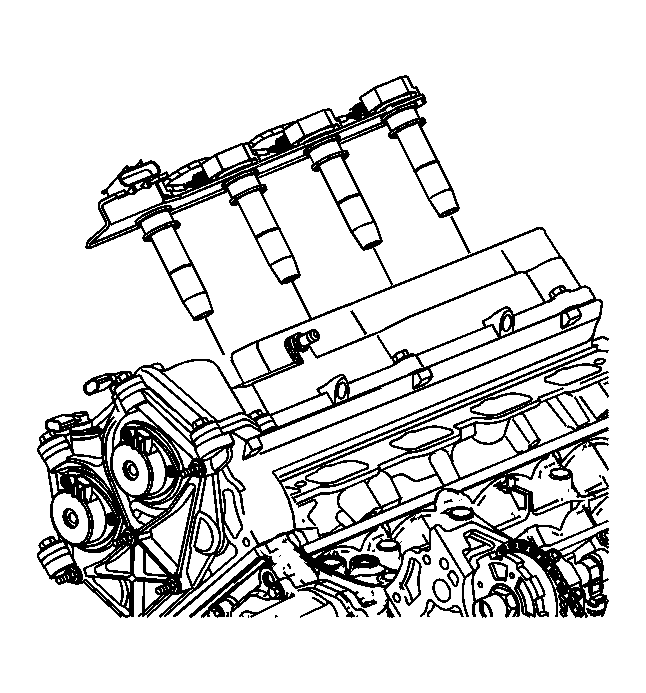

- Carefully install the ignition coil assembly.
- Install the ignition coil assembly retaining bolts.
Tighten: Tighten the ignition coil assembly retaining bolts to 10 N.m (89 lb in).

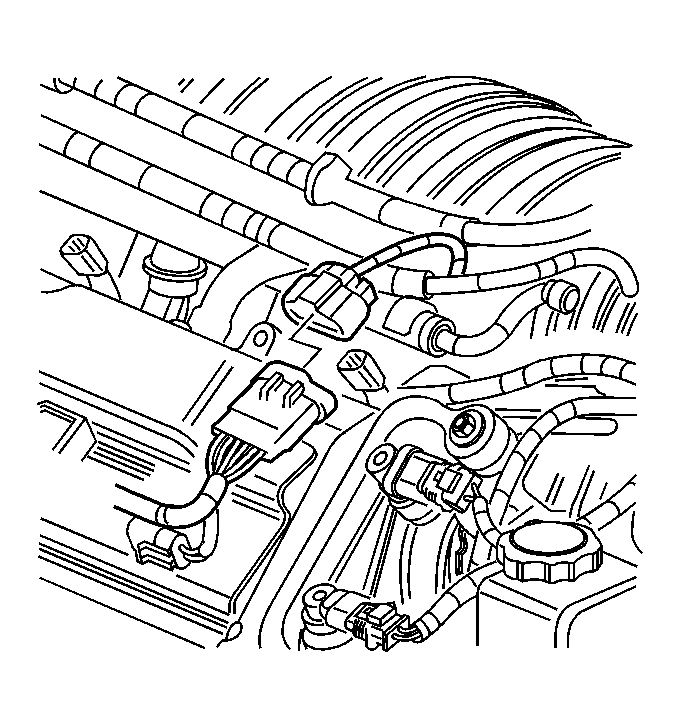

- Reconnect the ignition coil assembly electrical connector.
- Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 4.6L (LH2).
