2005 Cadillac XLRFACTORY OEM SERVICE PROCEDURE

Installation Procedure

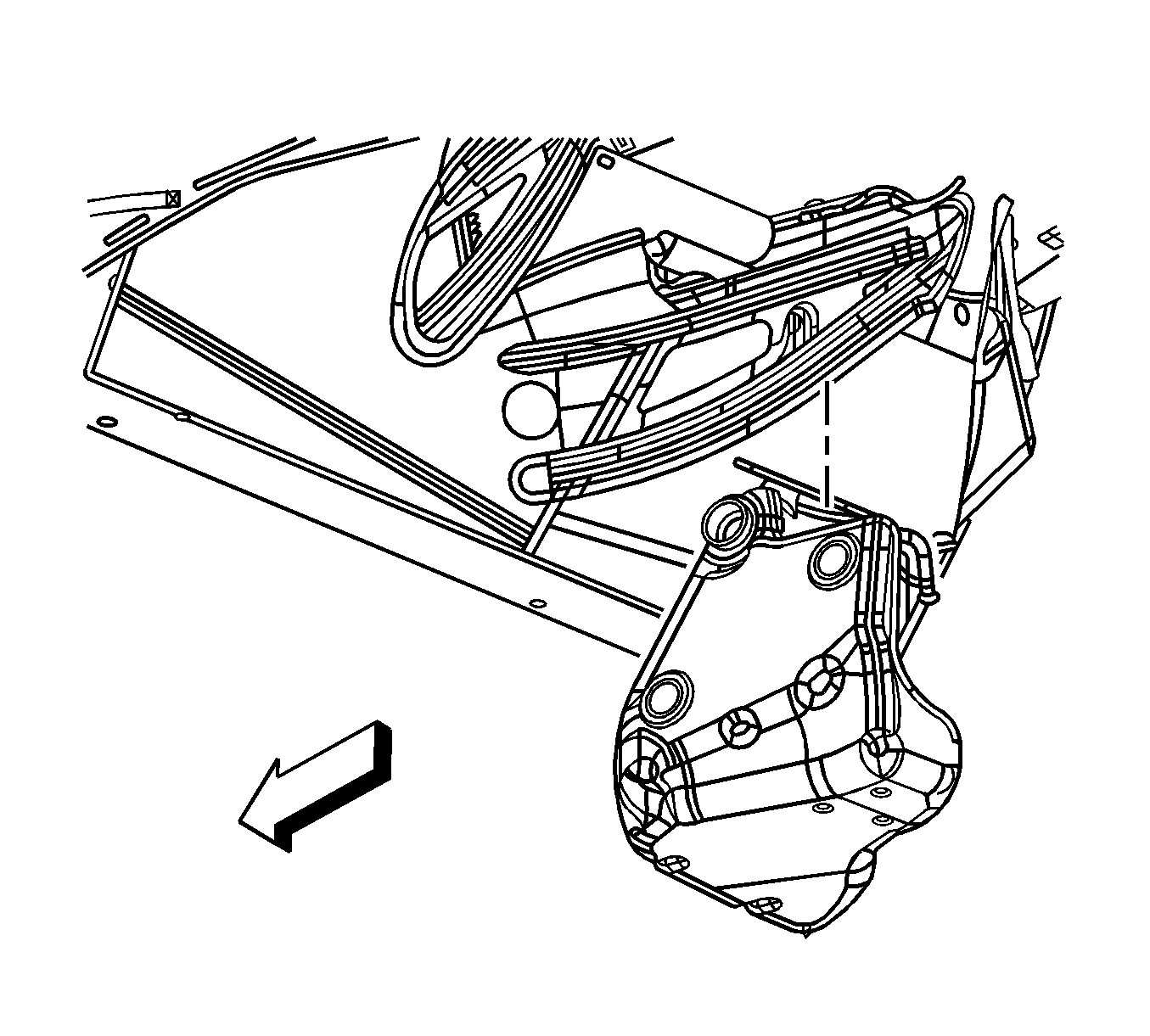

    Fig 1: View Of Fuel Tank - Right
    GM903572Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank.
  2. Install the fuel tank strap to the vehicle.
  3. Fig 2: Fuel Tank Strap Mount, Cover, Screws & Bolts
    GM903428Courtesy of GENERAL MOTORS CORP.
