2005 Cadillac XLRFACTORY OEM SERVICE PROCEDURE

Installation Procedure

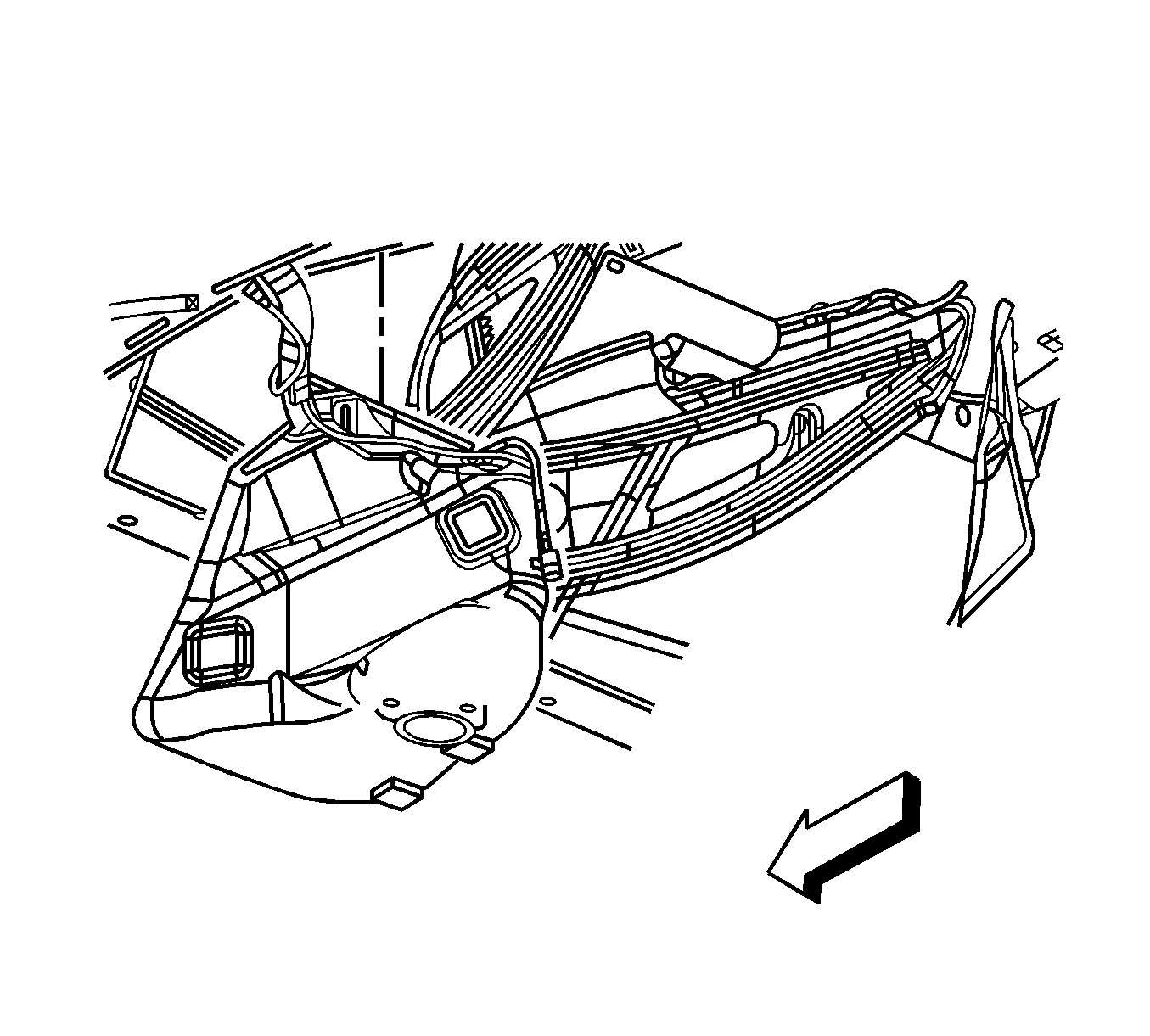

    Fig 1: View Of Fuel Tank - Left
    GM903417Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank.
  2. Install the fuel tank strap to the vehicle.
    3. Fig 2: Fuel Tank Strap Mount, Cover, Screws & Bolts
    GM903428Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel tank strap bolts loosely leaving the tank hanging approximately 1 inch.
  4. Remove the cap from the EVAP pipe.

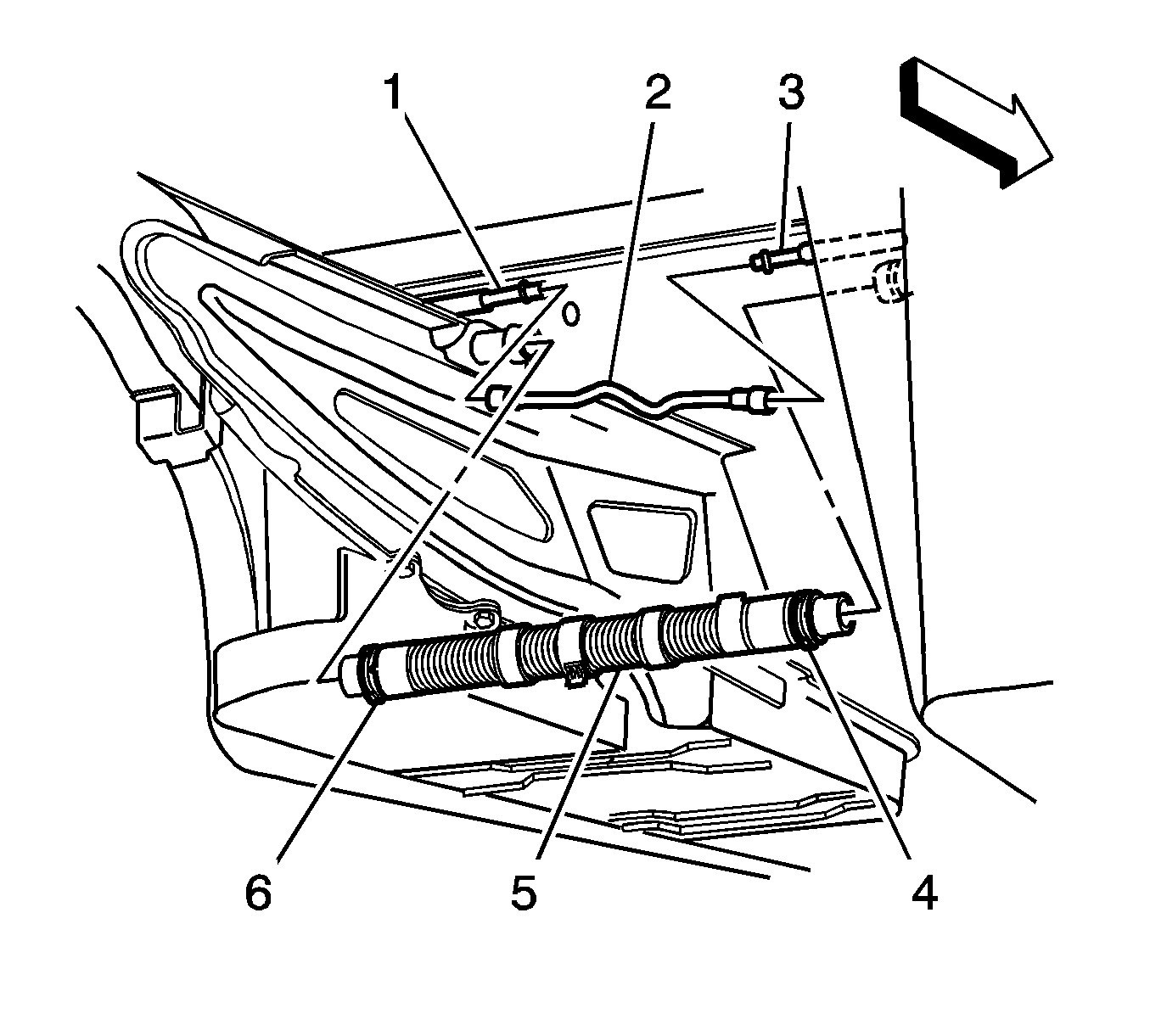

    5. Fig 3: EVAP Crossover Pipe & Tank Crossover Hose
    GM903412Courtesy of GENERAL MOTORS CORP.
  5. Connect the EVAP crossover pipe (2) quick connect fitting at the left fuel tank.
    6. Fig 4: View Of Crossover Tube To Fuel Tank O-Rings & Alignment Feature
    GM903547Courtesy of GENERAL MOTORS CORP.
  6. Lubricate the crossover tube to fuel tank connection O-rings (1-4) with P/N 1051717 rubber lubricant.

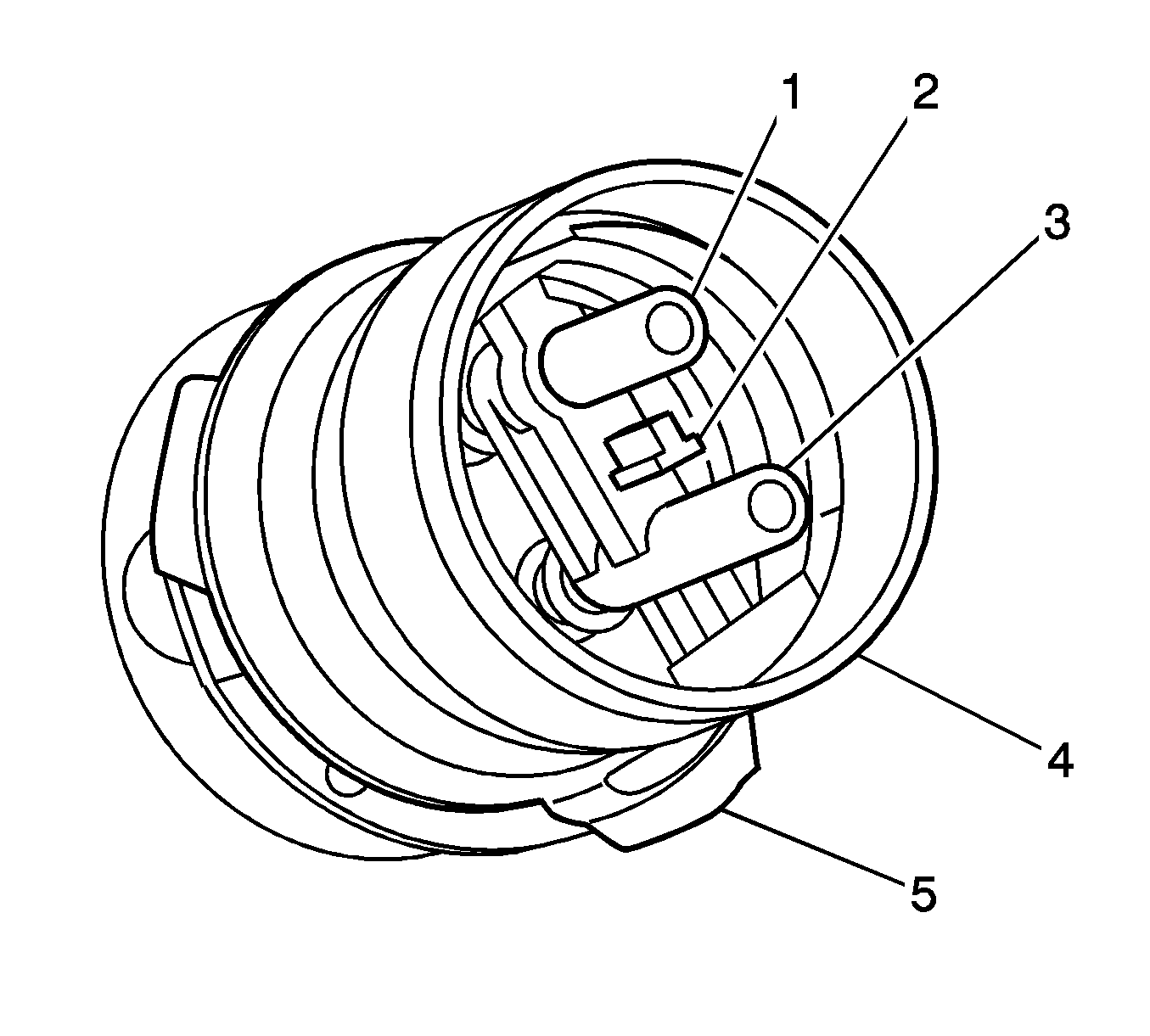

    7. Fig 5: View Of Crossover Tube
    GM903557Courtesy of GENERAL MOTORS CORP.
