2005 Cadillac XLRFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the right rear wheelhouse liner panel. Refer to Wheelhouse Liner Panel Replacement - Rear in Body Rear End.

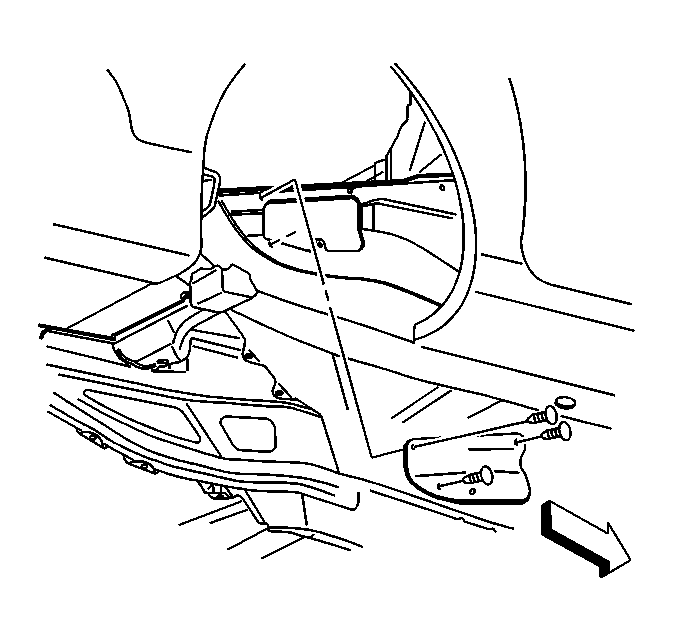

- Remove the EVAP canister access cover.
- Disconnect the fuel tank pressure sensor electrical connector.
- Remove the fuel tank pressure sensor by carefully prying the sensor out of the fuel tank with a screwdriver.
