2005 Cadillac XLRFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the fuel filler cap.
- Remove the left rear wheelhouse liner panel. Refer to Wheelhouse Liner Panel Replacement - Rear in Body Rear End.

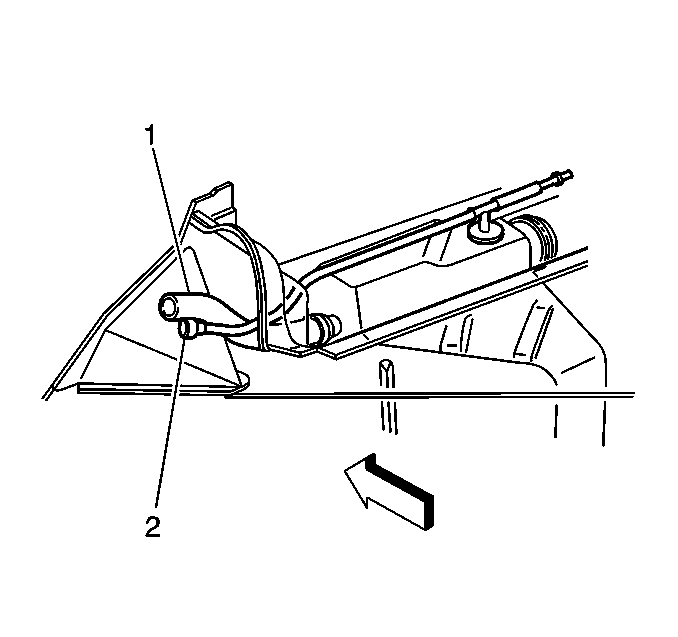

- Disconnect the fuel fill hose (1) and the vent hose (2) from the fuel tank fill and vent pipe.
- Cap the open ends of the fuel fill hose (1) and the vent hose (2).

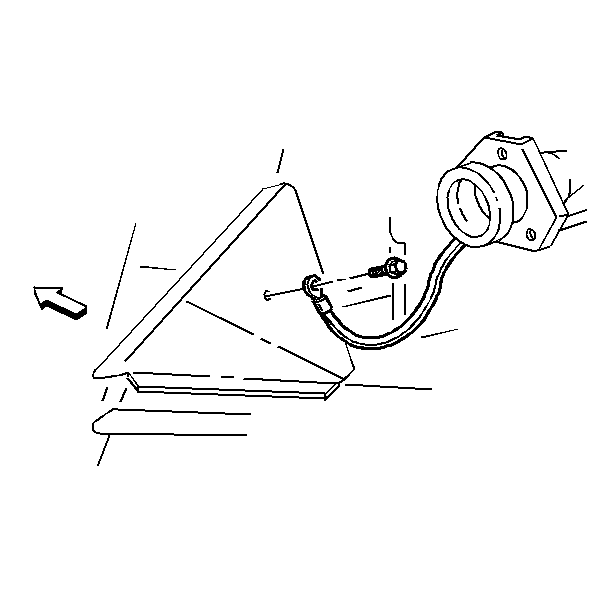

- Disconnect the fuel system ground strap.
- Remove the fuel tank fill and vent pipe from the fuel filler pocket.
