Installation Procedure

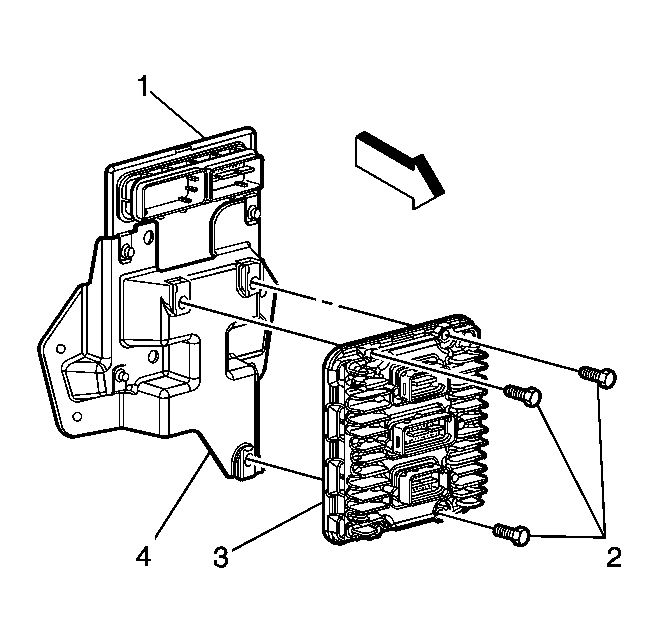

- Install the ECM (3) to the ECM bracket (4).
- Install the ECM retaining fasteners (2).
Tighten: Tighten the PCM retaining fasteners to 3.0 N.m (27 lb in).

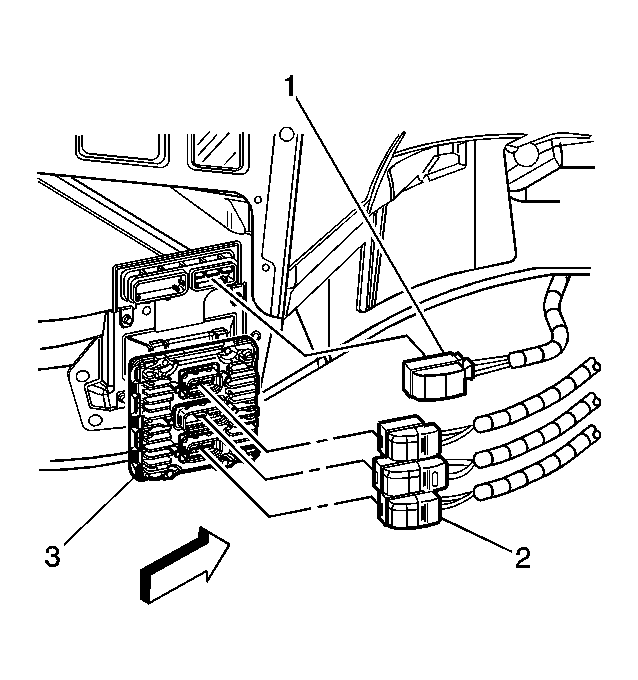

- Connect the electrical connectors (2) to the ECM (3).
- Install the right front wheelhouse filler panel. Refer to Wheelhouse Filler Replacement in Body Front End.
- If a new ECM is being installed, program the ECM. Refer to Control Module References in Computer/Integrating Systems.
