2005 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper fender brace bolts.
  2. Remove the upper fender brace.

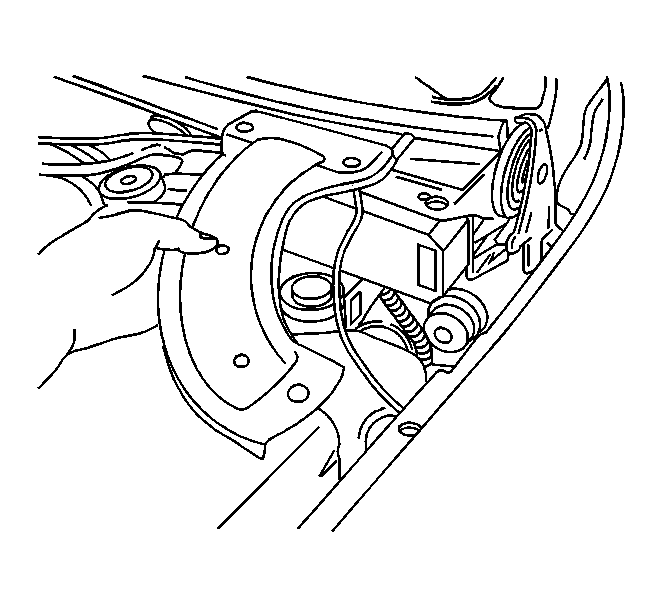

    Fig 1: Removing Upper Fender Brace (4.3L)
    GM346973Courtesy of GENERAL MOTORS CORP.

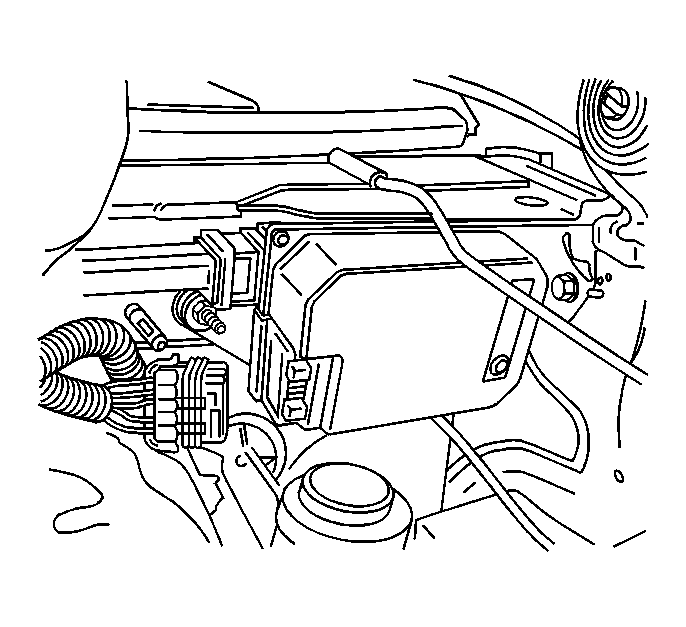

    3. Fig 2: Disconnect Cruise Control Module Electrical Connector (4.3L)
    GM346969Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the cruise control module electrical connector.
    4. Fig 3: Locating Cruise Control Module Nuts (4.3L)
    GM346962Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control module nuts.
  5. Disconnect the cruise control cable from the module. Refer to Cruise Control Cable Replacement (4.3L Engine) .
  6. Remove the cruise control module.
