2005 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Disconnect the negative battery cables.

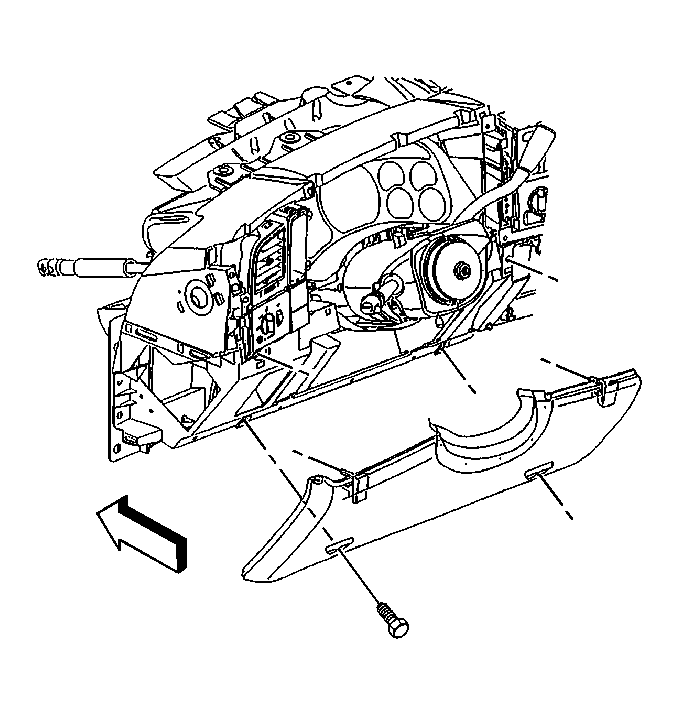

- Remove the knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages, and Console.

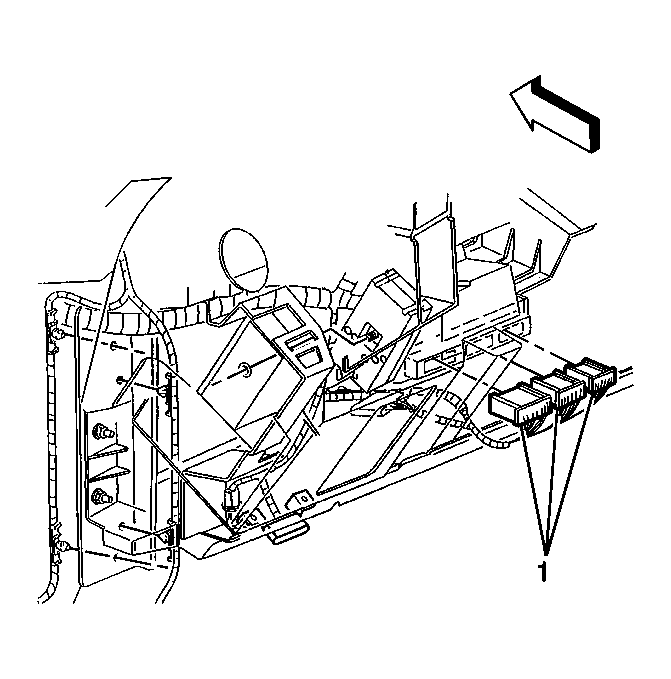

- Disconnect the brown connector.
- Disconnect all other connectors (1).
- Remove the body control module (BCM) from the sliding bracket.
CAUTION:
Refer to Battery Disconnect Caution in Cautions and Notices.
