2005 Cadillac DeVille Protection SeriesFACTORY OEM SERVICE PROCEDURE

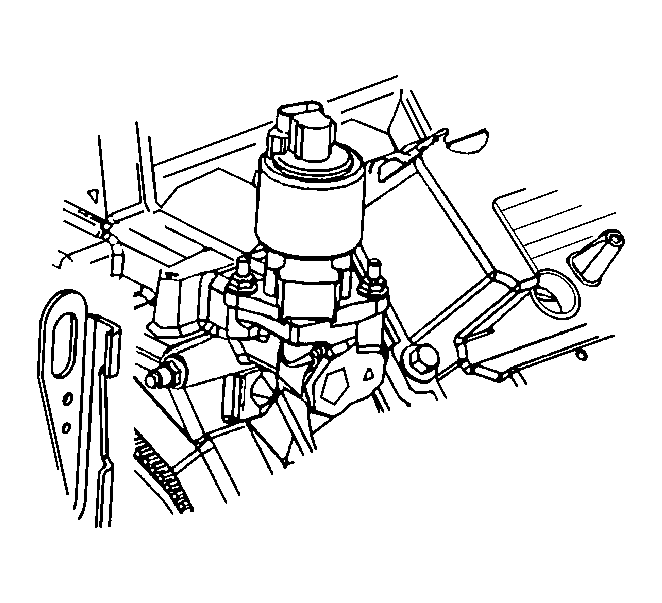

Installation Procedure
- Install the new gasket.
- Install the EGR valve.
- Install the EGR valve retaining nuts/bolts.
Tighten: Tighten the retaining nuts/bolts to 24 N.m (18 lb. ft.).
- Install the heat shield and nuts.
Tighten: Tighten the retaining nuts to 9 N.m (80 lb. in.).
- Reconnect the EGR valve electrical connector.
NOTE:
Refer to Fastener Notice in Cautions and Notices.
