2005 Cadillac DeVille BaseFACTORY OEM SERVICE PROCEDURE
Installation Procedure
CAUTION:
In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

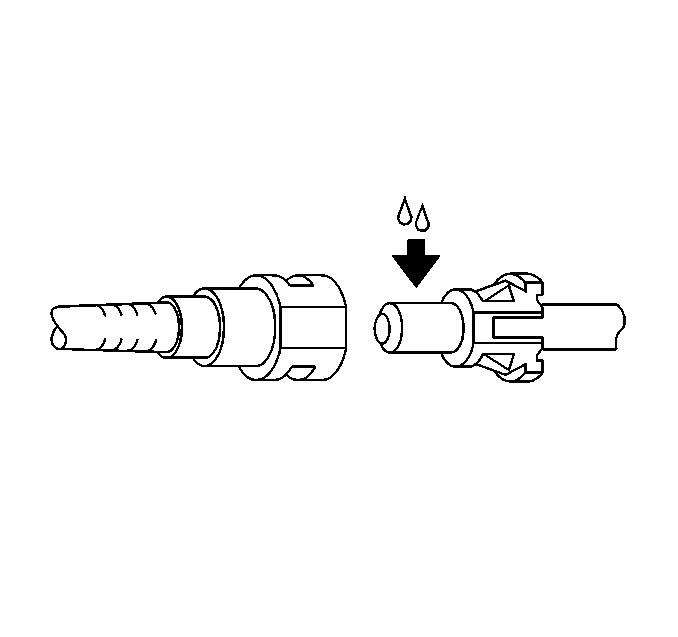

- Apply a few drops of clean engine oil to the male pipe end.

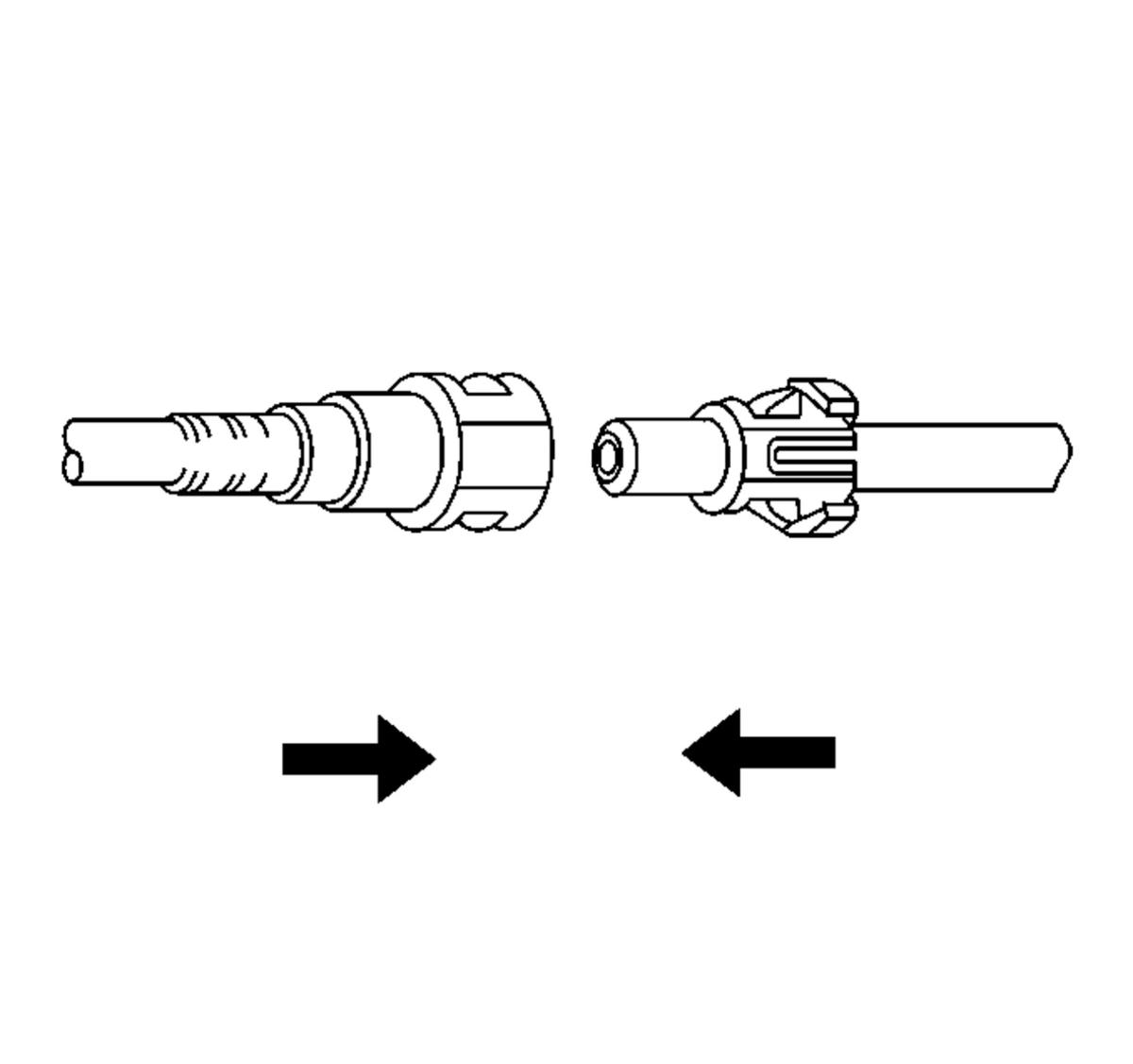

- Push both sides of the quick-connect fitting together in order to cause the retaining tabs/fingers to snap into place.

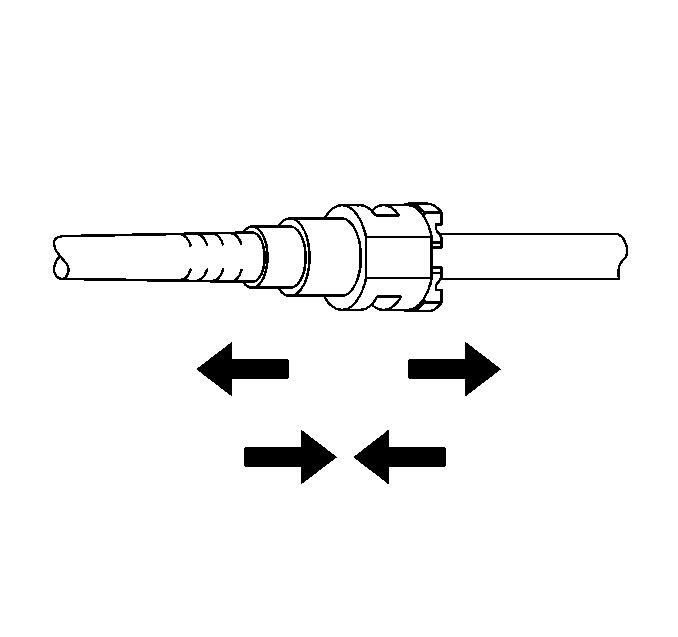

- Pull on both sides of the quick connect fitting in order to make sure the connection is secure.
