Installation Procedure

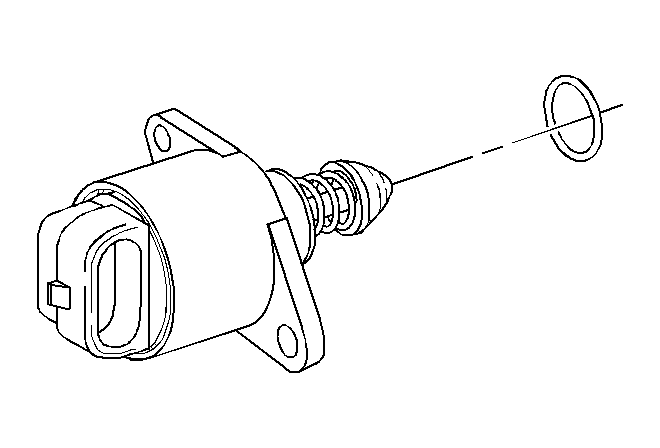

- Install the new IAC valve O-ring.

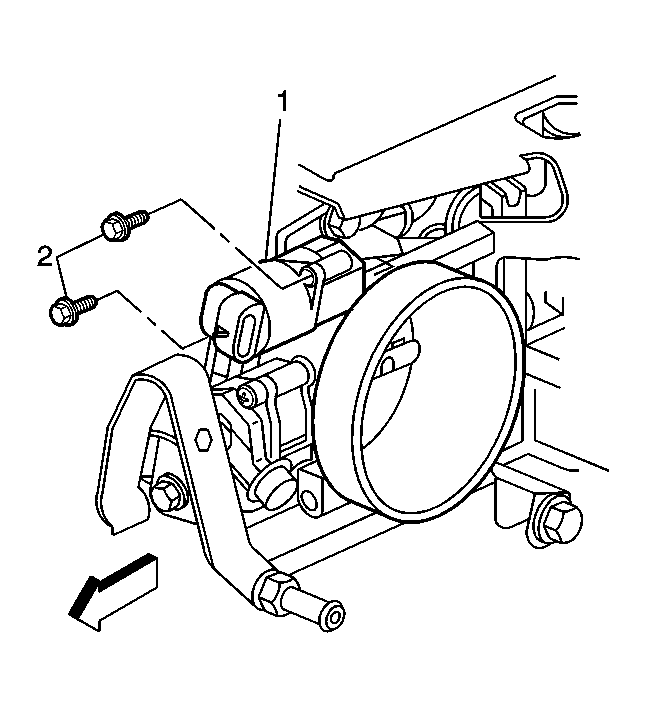

- Install the IAC valve (1) into the throttle body.
- Install the IAC valve attaching screws (2) into the IAC valve.
Tighten: Tighten the IAC valve attaching screws to 3 N.m (27 lb. in.).
- Install the electrical connector (1) into the idle air control valve (4).
- The powertrain control module (PCM) will reset the idle air control valve whenever the ignition switch is turned ON, then OFF.
- Turn the ignition switch ON.
- Turn the ignition switch OFF.
- Perform the IAC Valve learn procedure.
IAC Valve Learn Procedure
- Start and idle the engine for 15 seconds.
- Turn the ignition switch to the LOCK/OFF position.
- Wait 15 seconds.
- Restart the engine, and check for proper idle operation.
