2005 Cadillac DeVille BaseFACTORY OEM SERVICE PROCEDURE
Disassemble Procedure
- If the fuel tank is not being replaced, refer to the Installation Procedure.
- Remove the fuel pipes (2, 3) and the EVAP pipe (1).
- Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .

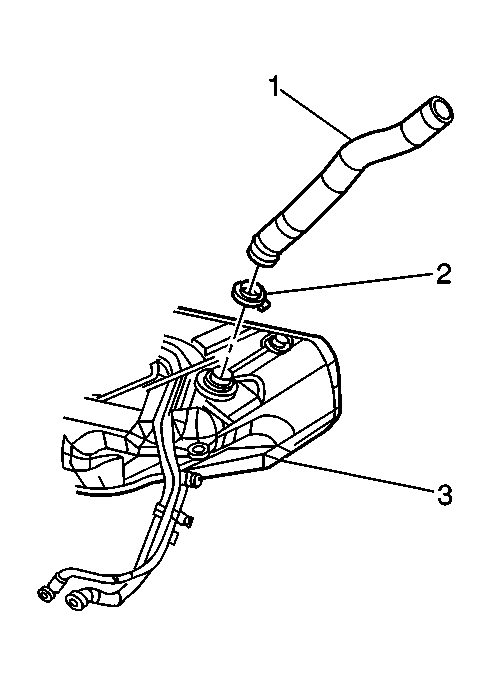

- Remove the fuel filler hose clamp (2).
- Remove the fuel filler hose from the fuel tank (3).
