2005 Cadillac DeVille BaseFACTORY OEM SERVICE PROCEDURE
Removal Procedure
NOTE:
Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.
- Turn OFF the ignition
- Drain the coolant to below the level of the engine coolant temperature (ECT) sensor. Refer to Draining and Filling Cooling System in Engine Cooling.

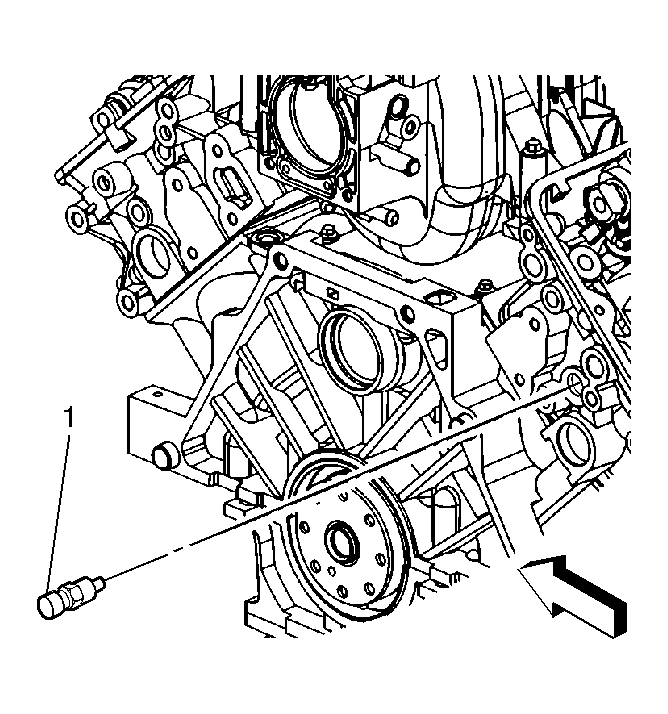

- Disconnect the ECT sensor harness connector (1).
- Remove the ECT sensor.
