2005 Cadillac DeVille BaseFACTORY OEM SERVICE PROCEDURE
Installation Procedure

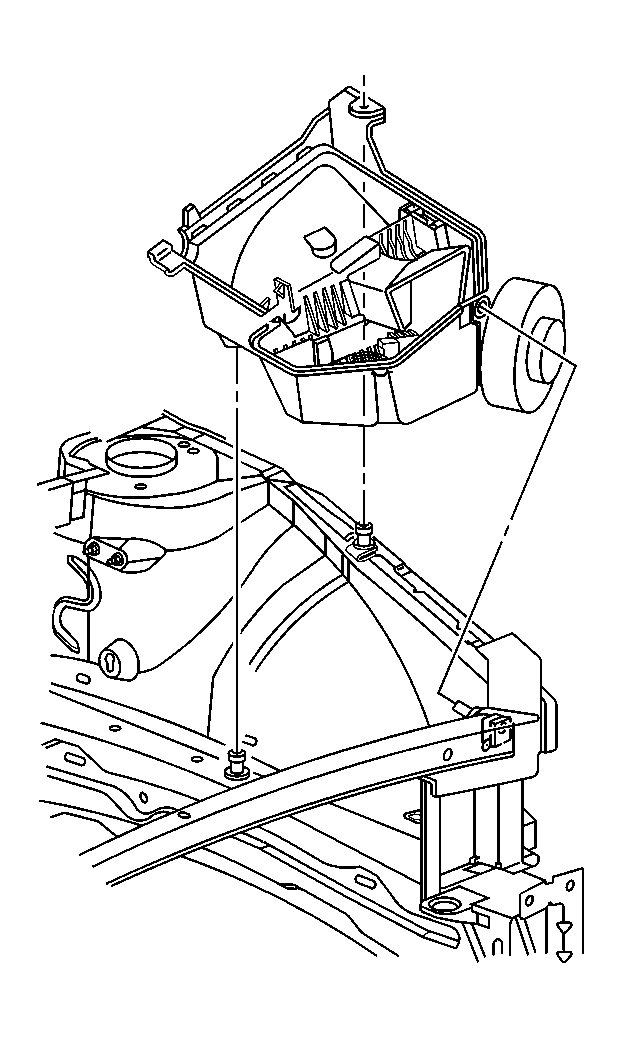

- Align the lower housing to the front locating pin.
- Gently push downward to secure the lower housing to the rear locating pins.
- Install the PCM and connector assembly to the lower housing.
- Handle the MAF sensor carefully.
- Do not drop the MAF sensor in order to prevent damage to the MAF sensor.
- Do not damage the screen located on the air inlet end of the MAF.
- Do not touch the sensing elements.
- Do not allow solvents and lubricants to come in contact with the sensing elements.
- Use a small amount of a soap based solution in order to aid in the installation.
NOTE:
