2005 Cadillac DeVille BaseFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Fig 1: View Of Accelerator Controls Cable Bracket, Cruise Control Cable, & Accelerator Cable

Courtesy of GENERAL MOTORS CORP.

Disconnect the cruise control cable (2) from the accelerator controls cable bracket (1).
Disconnect the accelerator cable (3) from the accelerator controls cable bracket (1).

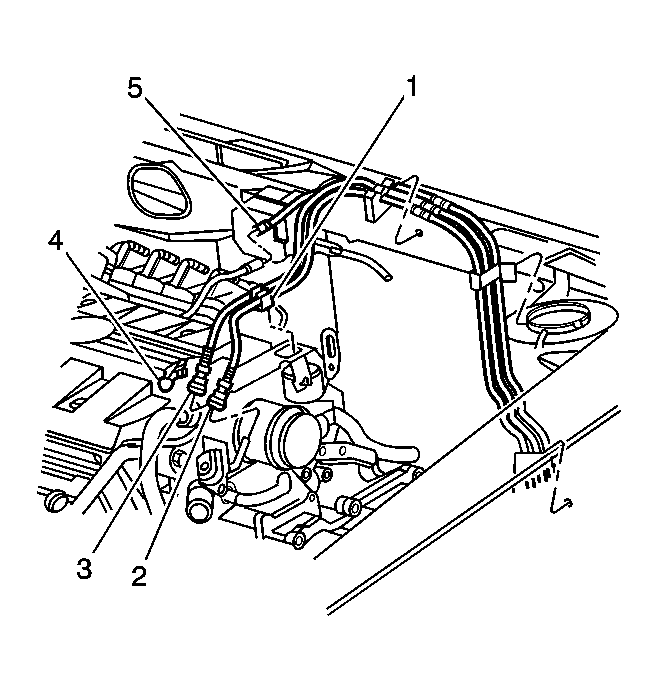

Fig 2: Identifying Fuel Feed/Return Pipes & Retainer

Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel feed (3) and fuel return (2) fuel pipes from the retainer (1).

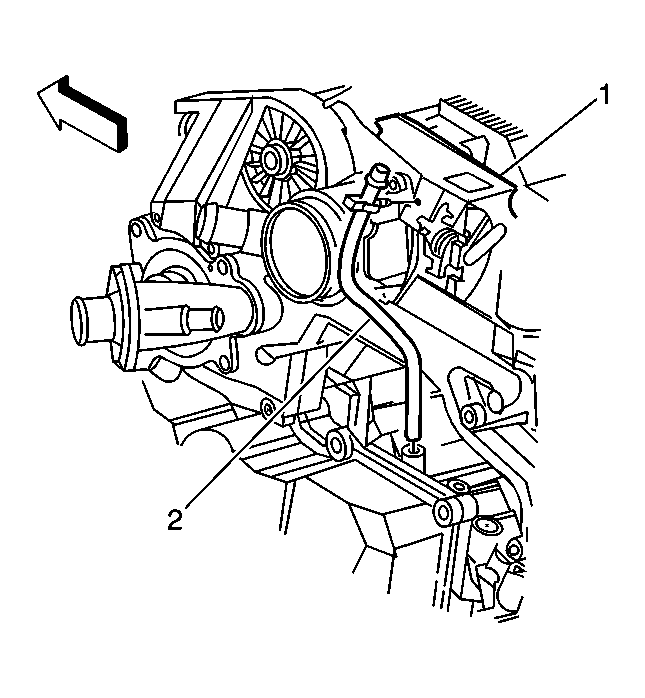

Fig 3: View Of Accelerator Controls Cable Bracket & Transaxle Vent Hose

Courtesy of GENERAL MOTORS CORP.

Disconnect the transaxle vent hose (2) clip from the accelerator controls cable bracket (1).

Fig 4: View Of Accelerator Controls Cable Bracket & Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the upper throttle body bolt.
Remove the bolts (2) from the accelerator controls cable bracket (3).
