Installation Procedure
- Install the PCM to the vehicle.
- Install the PCM wiring harness.

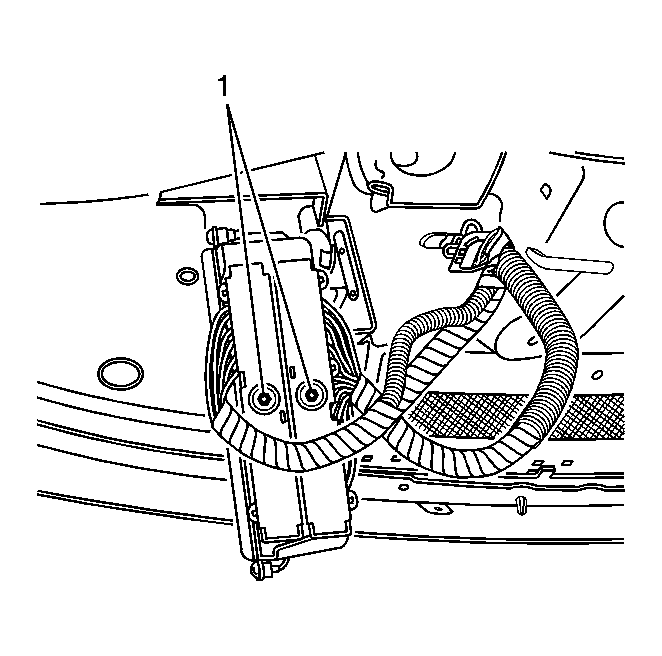

- Tighten the PCM electrical connector screws (1).
Tighten: Tighten the PCM electrical connector bolts to 8 N.m (71 lb in).
- Install the PCM to the PCM housing.
- Install the PCM housing cover.

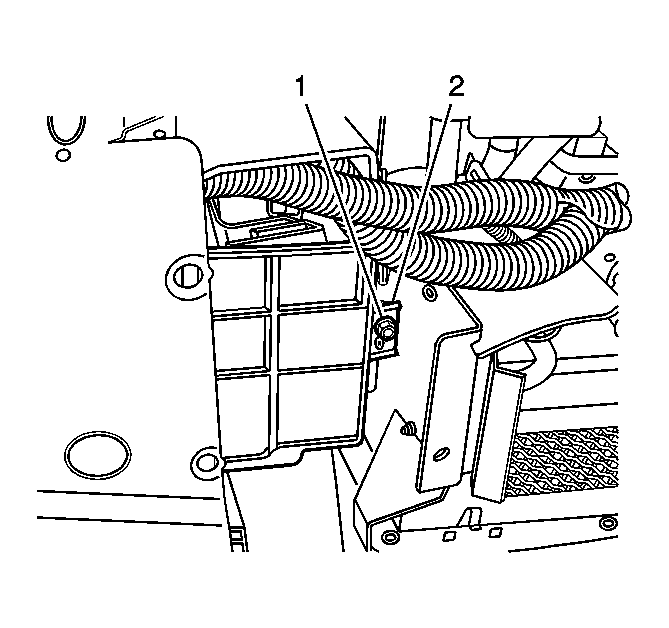

- Install the bolt (1) to the PCM cover housing.
Tighten: Tighten the PCM housing cover bolt to 10 N.m (89 lb in).

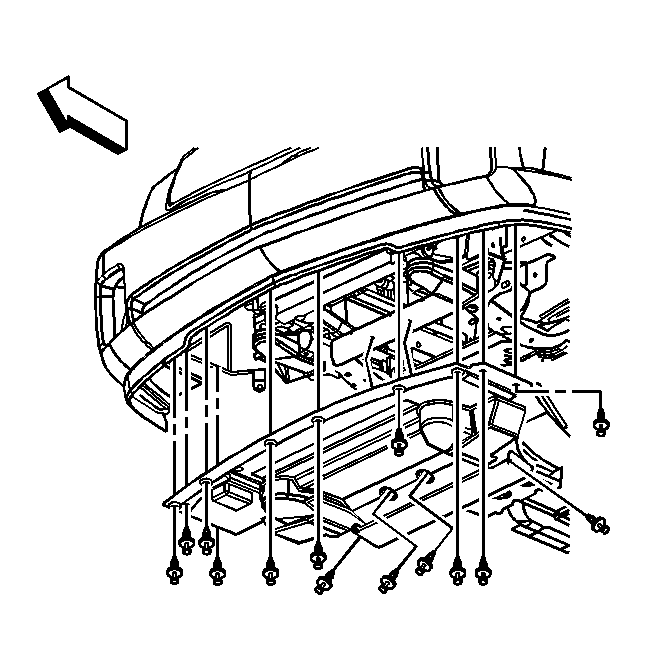

- Install the front air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
- Lower the vehicle.
- Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
- Program the PCM. Refer to Powertrain Control Module Programming and Setup in Programming and Setup.
