IMPORTANT: An improperly installed air cleaner or a distorted or missing intake air duct may cause a diagnostic trouble code (DTC) to set. Ensure that the air cleaner assembly and intake air duct is installed correctly and that there are no kinks or folds in the intake air duct. Debris in the air cleaner assembly or MAF sensor inlet screen, that may distort air flow can set a DTC.

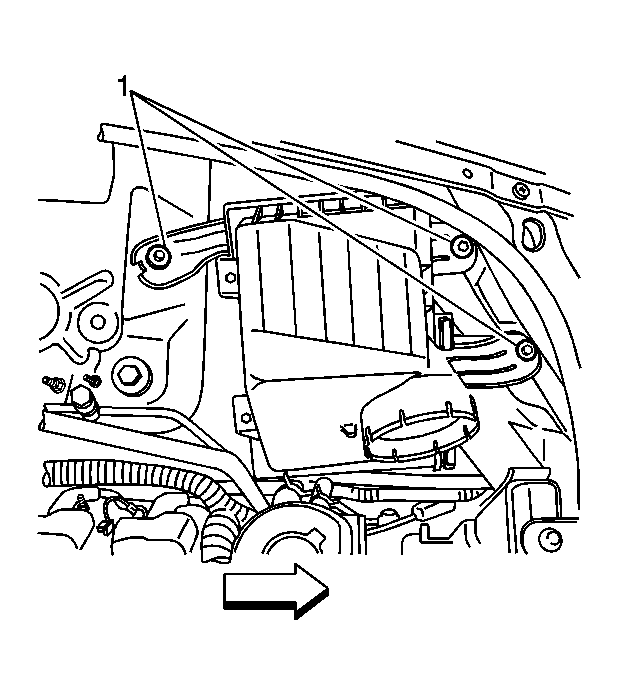

Fig 1: View Of Screws Securing Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner assembly into the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the air cleaner assembly screws (1).
Tighten: Tighten the air cleaner assembly screws to 10 N.m (89 lb in).

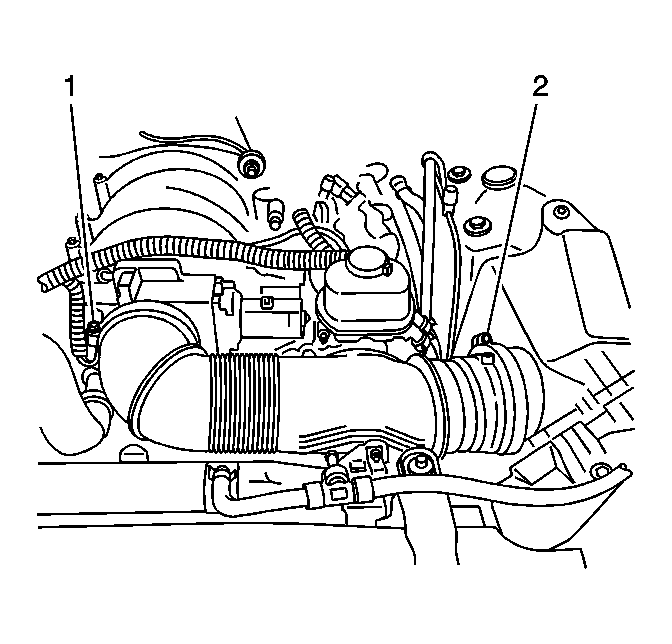

Fig 2: Loosening Air Cleaner Outlet Duct Clamps

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner outlet duct and tighten the clamps (1,2). Refer to Air Cleaner Outlet Duct Replacement .
Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 5.7L.
