2004 Cadillac XLRFACTORY OEM SERVICE PROCEDURE

Automatic Transmission Shift Lock Control Connector End Views

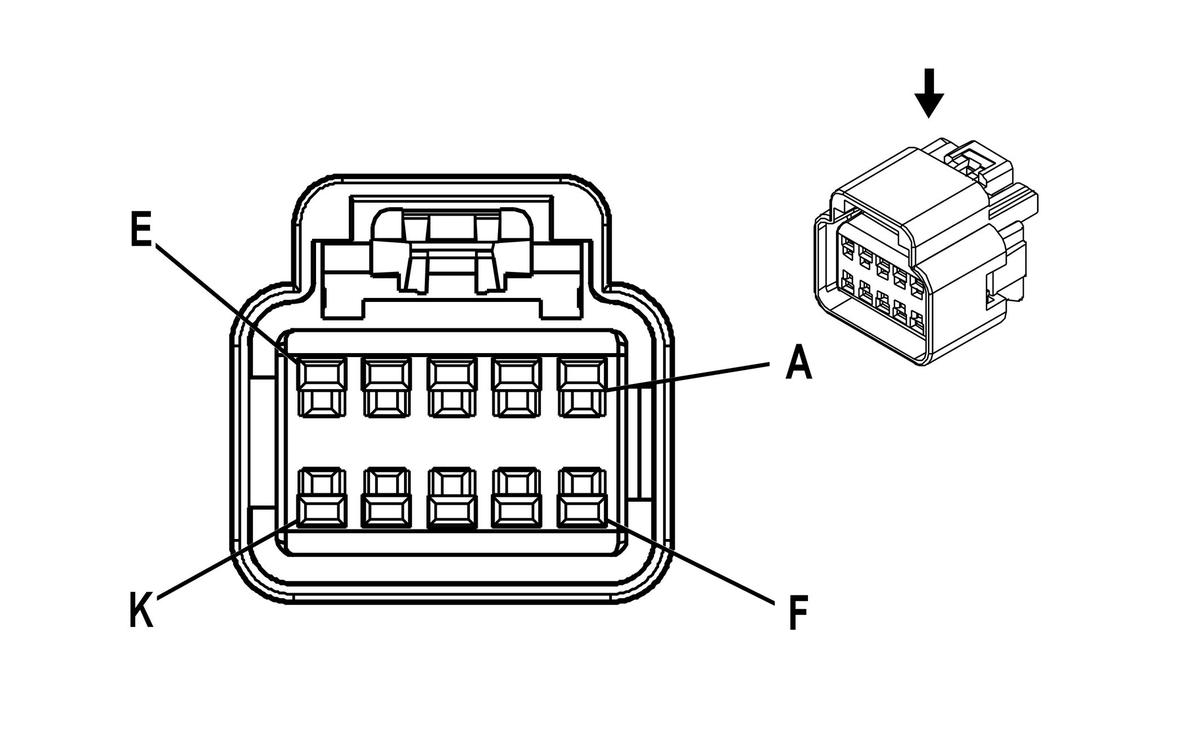

Automatic Transmission Shift Lever Connector End Views

GM646384Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332153
  • Service: 88986440
  • 10 Way F GT 150 (BK)
Pin Wire Color Circuit Number Function
A D-GN 1399 RAP Relay Coil Supply Voltage
YE 843 Accessory Voltage (Export)
B D-GN 5525 Tap Up/Tap Down Enable Signal
C GY/BK 1458 Instrument Panel Lamp Supply Voltage (4)
D PK 1039 Run/Crank Ignition 1 Voltage
E RD/WH 840 Battery Positive Voltage
F D-GN/WH 1932 Shift Select Switch Park Signal
D-GN/WH 1932 Shift Select Switch Park Signal (Export)
G BK 1550 Ground
H PU 5526 Tap Up/Tap Down Switch Signal
J GY/BK 1357 Instrument Panel Lamp Control
K D-GN/WH 1135 Brake Transmission Shift Interlock Solenoid Supply Voltage
