2004 Cadillac SevilleFACTORY OEM SERVICE PROCEDURE

Body Control System Component Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

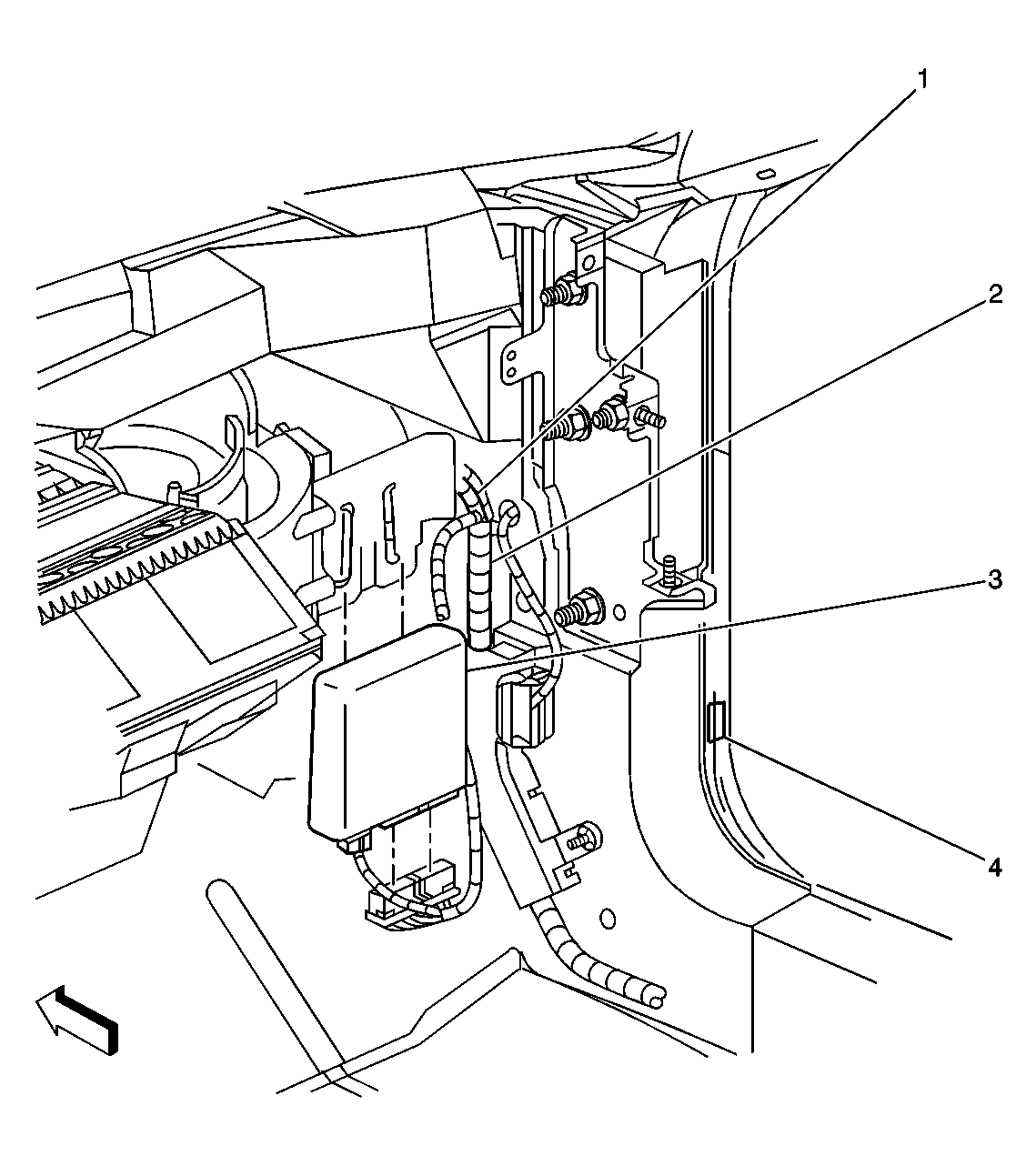

Fig 1: Right Side of the Instrument Panel, Near the Blower Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S216
2	S217
3	Dash Integration Module (DIM)
4	G201

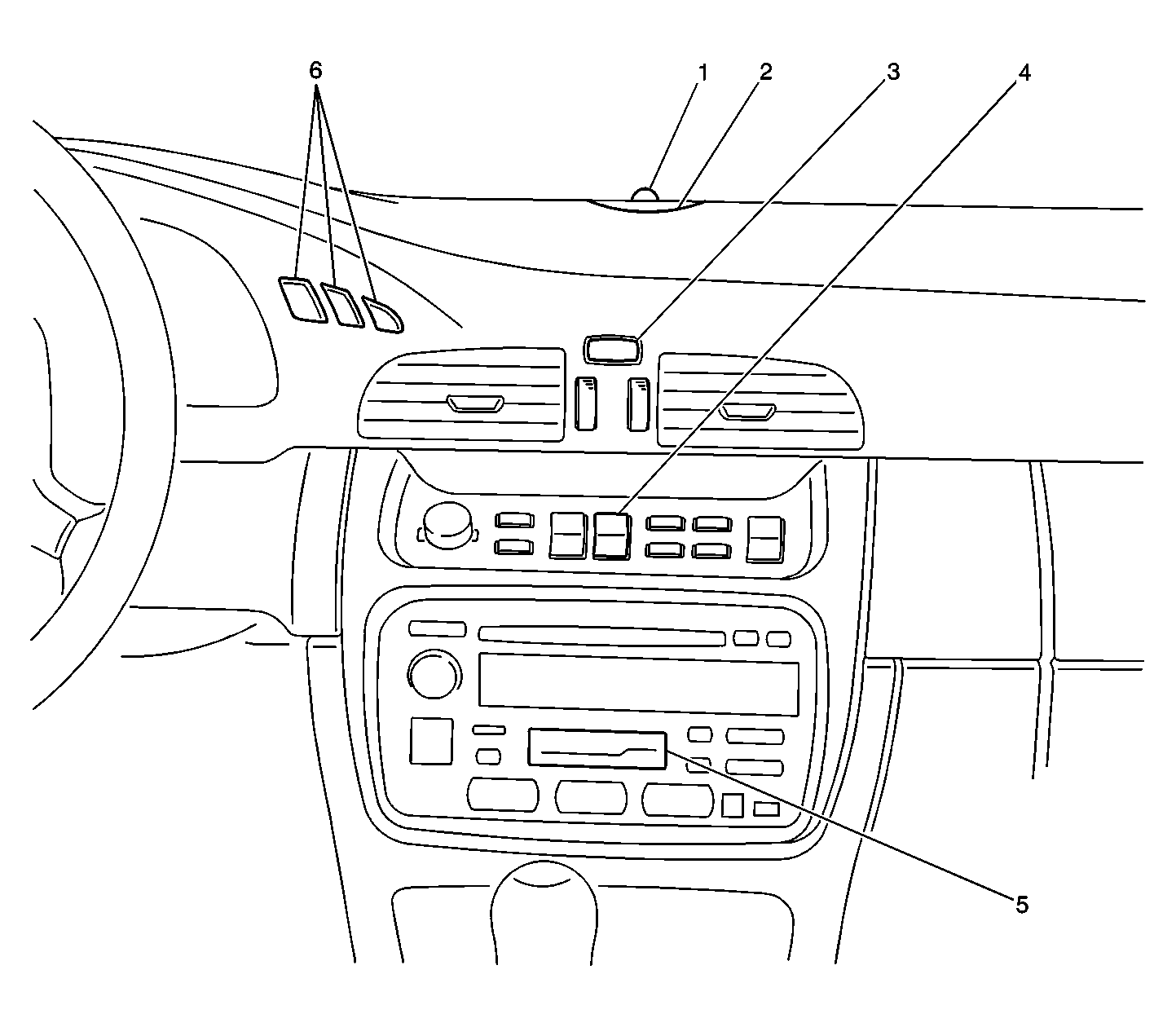

Fig 2: Passenger Compartment, Center of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunload Sensor Assembly
2	Speaker - Front I/P Midrange
3	Hazard Switch
4	Instrument Panel Integration Module (IPM)
5	Radio (w/o U3R, U3S, U3Q)
6	Driver Information Center (DIC) Switch - Right

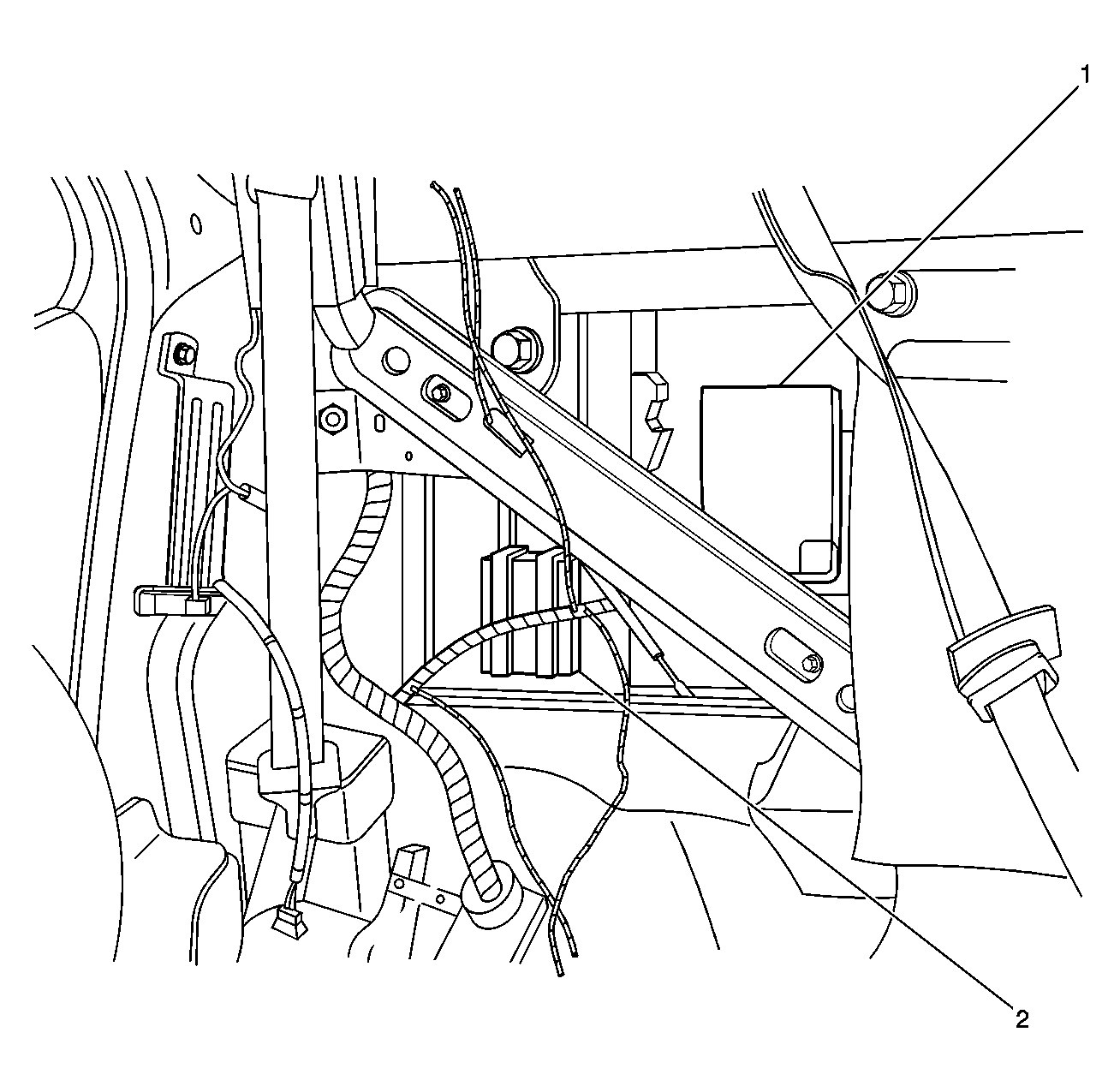

Fig 3: Right Rear of the Passenger Compartment, Behind the Rear Seat Back Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Telephone Module
2	Rear Integration Module (RIM)
