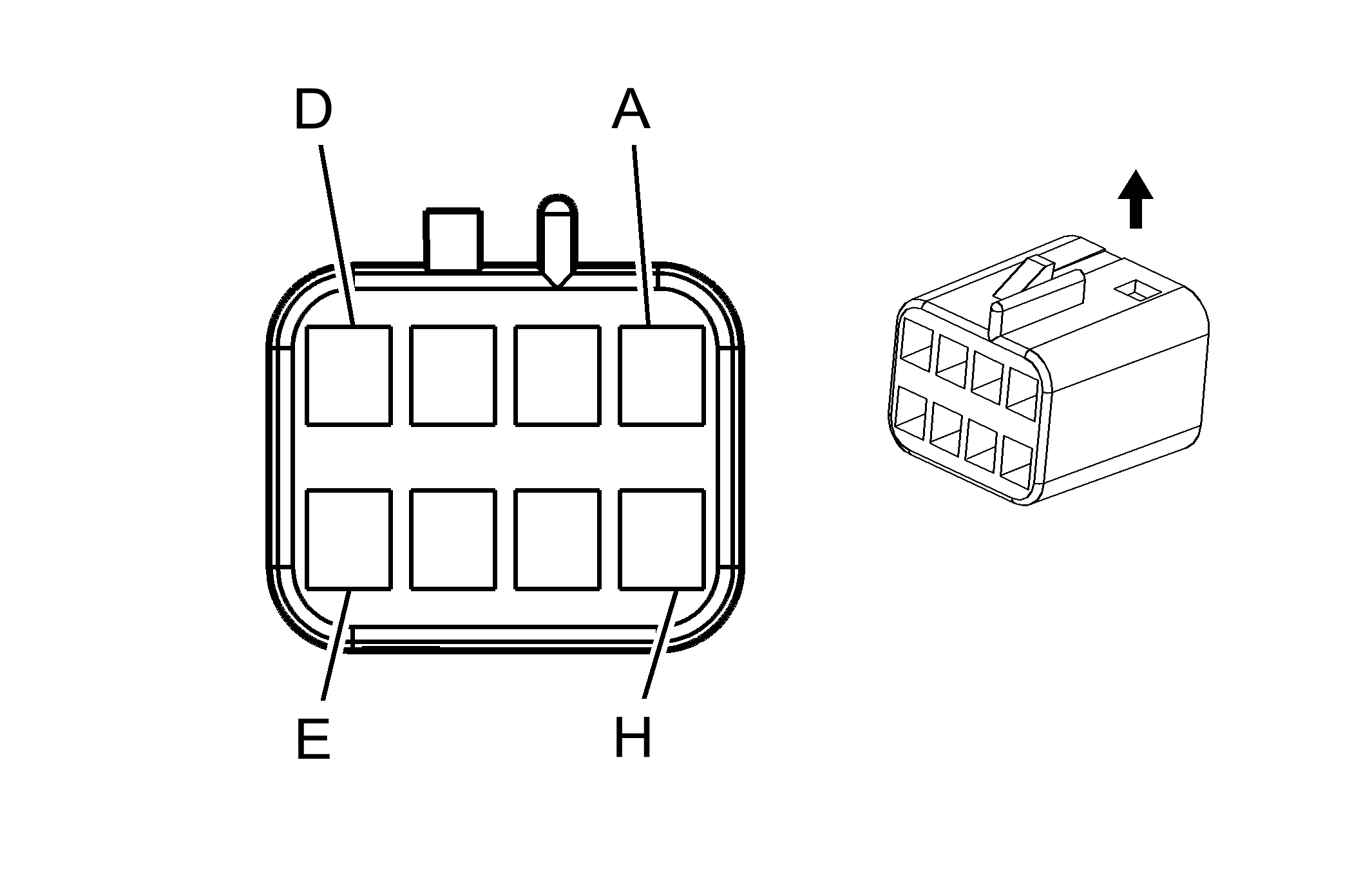

Auxiliary RCA Video Jacks Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12065398 8-Way F Metri-Pack 150 Series (NAT)
Pin	Wire Color	Circuit No.	Function
A	TAN	2057	Auxiliary Video Low Signal
B	WHT	2058	Auxiliary Audio Right Signal
C	PPL	2056	Auxiliary Video High Signal
D	PNK	2060	Auxiliary Detection Signal
E	YEL	2059	Auxiliary Audio Left Signal
F	BARE	814	Drain Wire
G-H	-	-	Not Used

Traffic Information Receiver Connector End View (VICS)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15393848 10-Way F 050 Unsealed Series (BLK)
Pin	Wire Color	Circuit No.	Function
1	GRY	5383	Traffic Information Signal (+)
2	BRN	5384	Traffic Information Signal (-)
3	ORN	3240	Battery Positive Voltage
4	YEL	43	Accessory Voltage
5	BLK/wht	851	Ground
6	YEL	5385	Traffic Information Request Signal
7	BARE	814	Drain Wire
8-10	-	-	Not Used

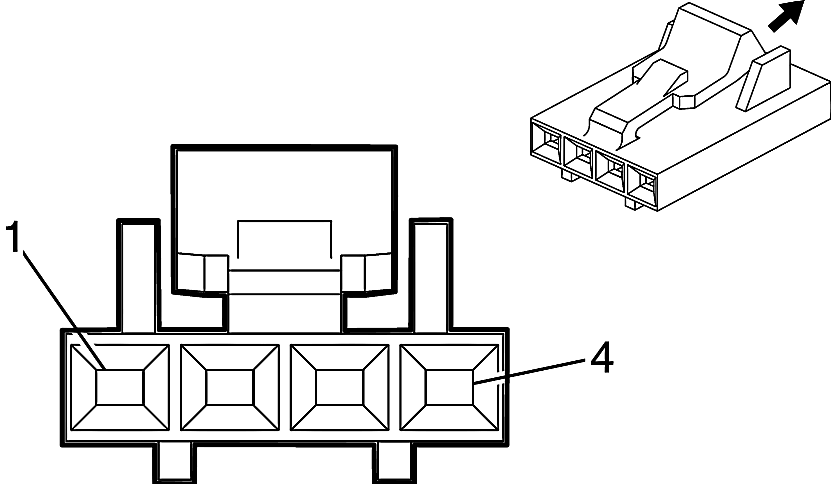

TV Antenna Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		16198556 4-Way F MODU Series IV (BLK)
Pin	Wire Color	Circuit No.	Function
1	LT GRN/WHT	2707	Antenna Select Signal (-)
2	GRY	1698	Antenna Select Supply Voltage
3	DK BLU/WHT	1849	Antenna Select Baud 2 Signal (+)
4	BLU/WHT	1801	Antenna Select Baud 1 Signal (+)
