IMPORTANT: If the PCM is being programmed using the Off-Board method, perform the programming before continuing with the steps listed below. Refer to the Off-Board procedure in Service Programming System (SPS) in Programming.

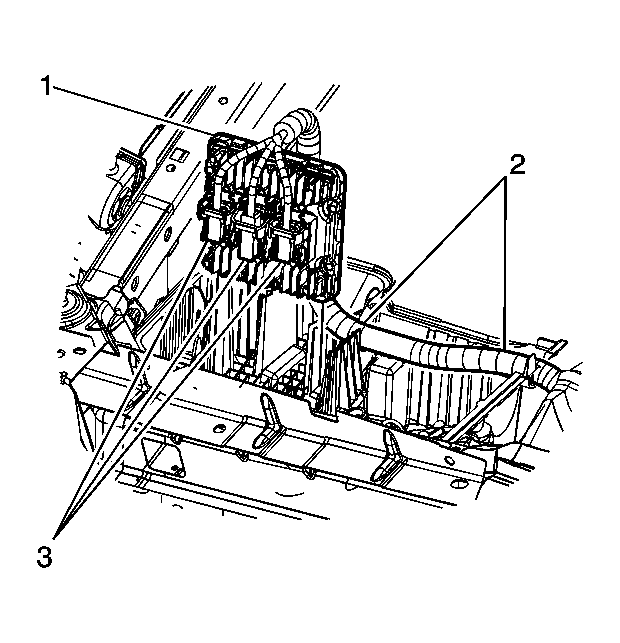

Fig 1: Identifying PCM

Courtesy of GENERAL MOTORS CORP.

Install the PCM connectors and locks.
Install the PCM (1).

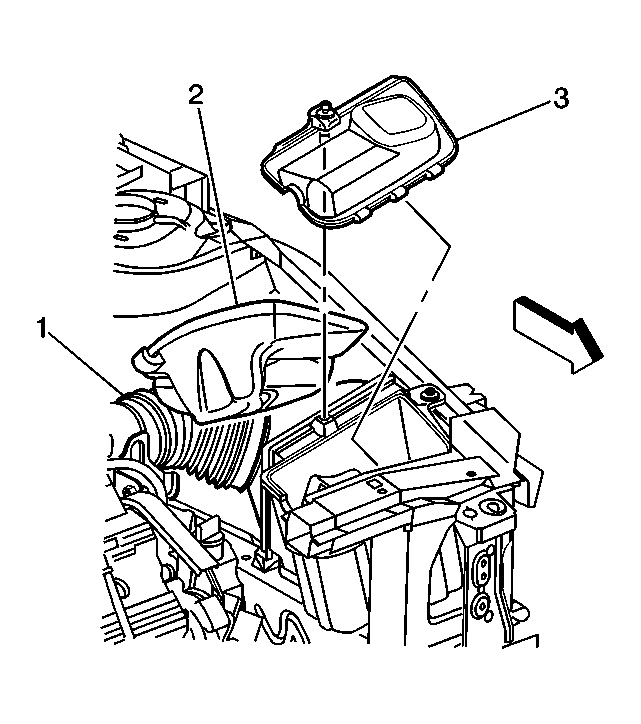

Fig 2: View of Air Duct/Resonator Assembly & Air Cleaner Cover

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner cover (3) onto the air inlet housing.
Snap the assembly clamps into place.

Fig 3: View of Intake Air Duct/Resonator to PCM Housing Screw

Courtesy of GENERAL MOTORS CORP.

Align the intake air duct/resonator assembly (3) into place.
Install the screw onto the intake air duct/resonator assembly.
NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten: Tighten the intake air duct clamp to 3 N.m (27 lb in).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
Program the PCM. Refer to Service Programming System (SPS) in Programming.
