2004 Cadillac SevilleFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the right closeout/insulator panel replacement. Refer to Closeout/Insulator Panel Replacement - Left (LHD) or Closeout/Insulator Panel Replacement - Left (RHD) in Instrument Panel, Gages and Console.

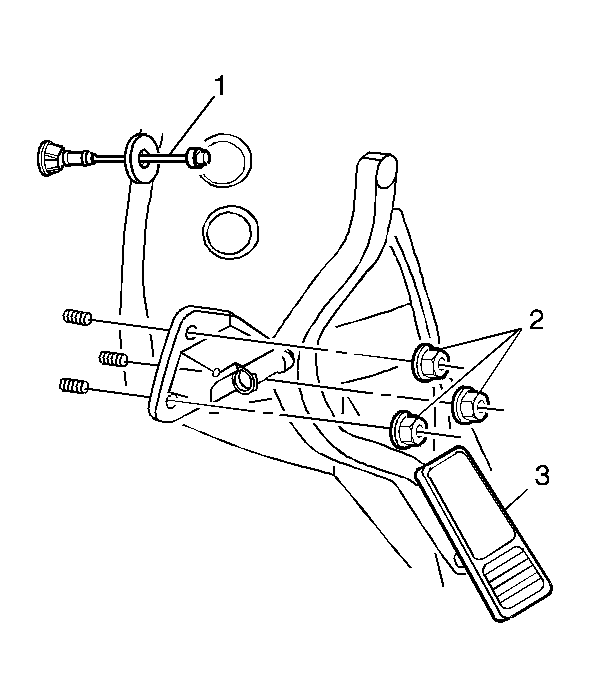

- Remove the accelerator controls cable (1) from the accelerator controls pedal (3).
- Remove the nuts (2) from the accelerator controls pedal assembly (3).
- Remove the accelerator controls pedal assembly (3).
