2004 Cadillac SevilleFACTORY OEM SERVICE PROCEDURE

Installation Procedure

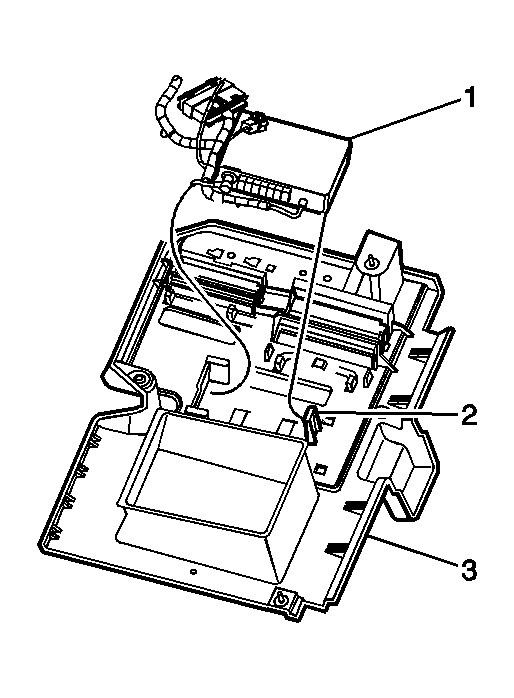

    Fig 1: View of VCIM Electrical Component Mounting Bracket
    GM787324Courtesy of GENERAL MOTORS CORP.
  1. When replacing the VCIM, record the 11-digit electronic serial number (ESN) and the 10-digit station identification (STID) number from the label on the new VCIM (1).
  2. Connect the antenna cable and electrical connections to the VCIM (1).
  3. Slide the VCIM (1) into the electrical component mounting bracket (3).
  4. Push in on the top of the VCIM (1) until an audible click is heard, indicating the retaining tab (2) has securely fastened the VCIM (1) to the electrical component mounting bracket (3).
  5. Partially install the electrical component mounting bracket (1) to the vehicle body.

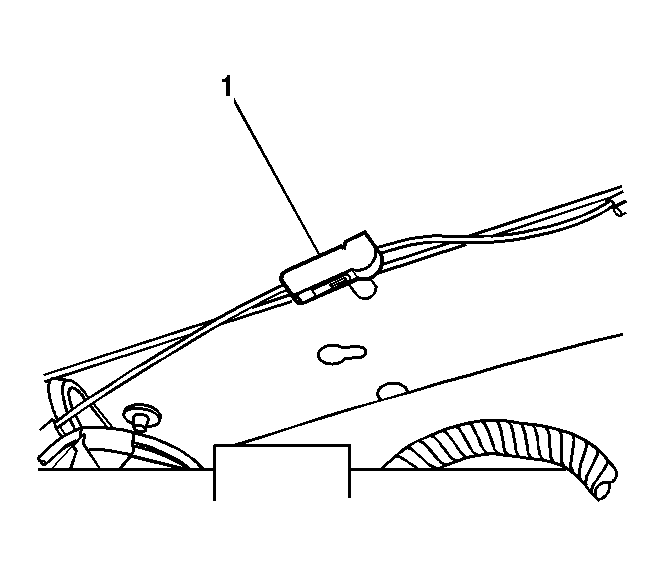

    6. Fig 2: View of GPS Antenna Cable
    GM820709Courtesy of GENERAL MOTORS CORP.
  6. Attach the GPS antenna cable (1) to the cross car brace.
    7. Fig 3: View Of Mounting Bracket & Fasteners
    GM625727Courtesy of GENERAL MOTORS CORP.
  7. Install the electrical component mounting bracket (1) to the studs.
    8. NOTE: Refer to Fastener Notice in Cautions and Notices.
  8. Install the electrical component mounting bracket nuts (2).

    Tighten:  Tighten the nuts to 9 N.m (80 lb in).

  9. Install the rear compartment trim. Refer to Compartment Trim Panel Replacement - Rear in Body Rear End.
    10. IMPORTANT: After replacing the vehicle communication interface module, you must reconfigure the OnStar® system. Failure to reconfigure the system will result in an additional customer visit for repair. In addition, pressing and holding the white dot button on the keypad will NOT reset this version of the OnStar® system. This action will cause a DTC to set.
  10. Reconfigure the OnStar® system. Refer to OnStar Reconfiguration .
