2004 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

Removal Procedure

NOTE: Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.

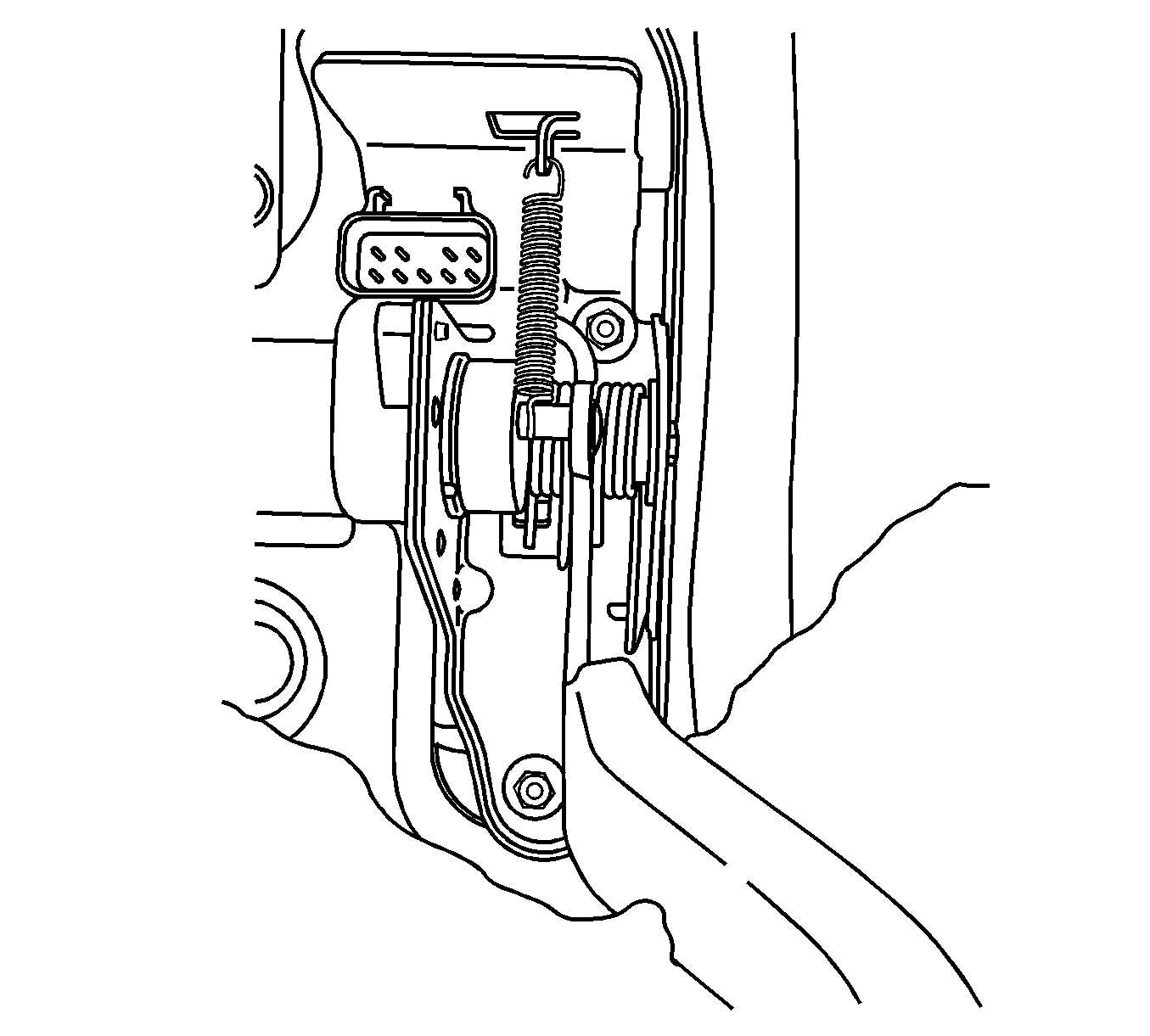

Fig 1: View Of Accelerator Pedal Position Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the connector position assurance (CPA) retainer.
Disconnect the accelerator pedal position (APP) sensor electrical connector.
Reposition the carpet to access the lower nut.

Fig 2: View Of Accelerator Pedal Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the accelerator pedal nuts.
Remove the accelerator pedal assembly.
