2004 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE
Engine and Transmission Usage

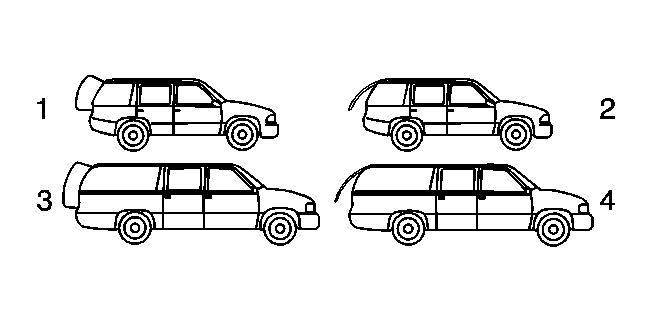

| Callout | Component Name |
|---|---|
| 1 | 4-Door Utility Rear Cargo Doors |
| 2 | 4-Door Utility Liftgate/Glass |
| 3 | 4-Door Suburban with Rear Cargo Doors |
| 4 | 4-Door Suburban Liftgate/Glass |
Engine and Transmission Applications
| Engine (RPO) | Transmission (RPO) | ||
|---|---|---|---|
| 4.8L V8 (LR4) | 4L60E (M30) | ||
| 5.3L V8 (L59) | 4L60E (M30) | ||
| 5.3L V8 (LM7) | 4L60E (M30) | ||
| 6.0L V8 (LQ4) | 4L60E HD (M32) 4L80E (MT1) |
||
| 6.0L V8 (LQ9) | 4L60E HD (M32) | ||
| 8.1L V8 (L18) | 4L80E HD (MN8) |
