Removal & Installation

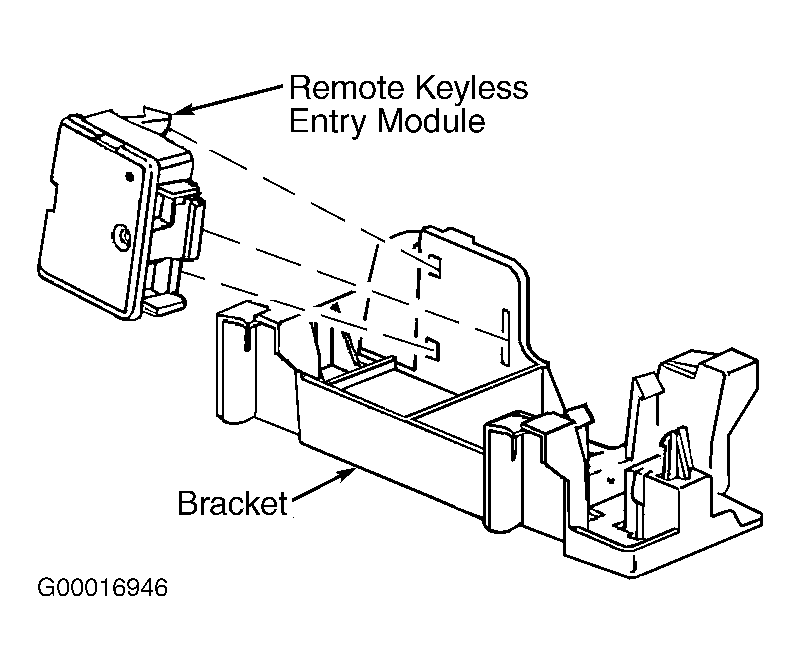

Remove rear shelf trim from inside rear storage compartment. See REAR COMPARTMENT TRIM PANEL . Push on retainer at rear edge of bracket and slide towards driver's side. Disconnect electrical connectors from all modules on bracket. Remove remote keyless entry module from bracket. See Fig 1 . To install, reverse removal procedure.
