Removal & Installation

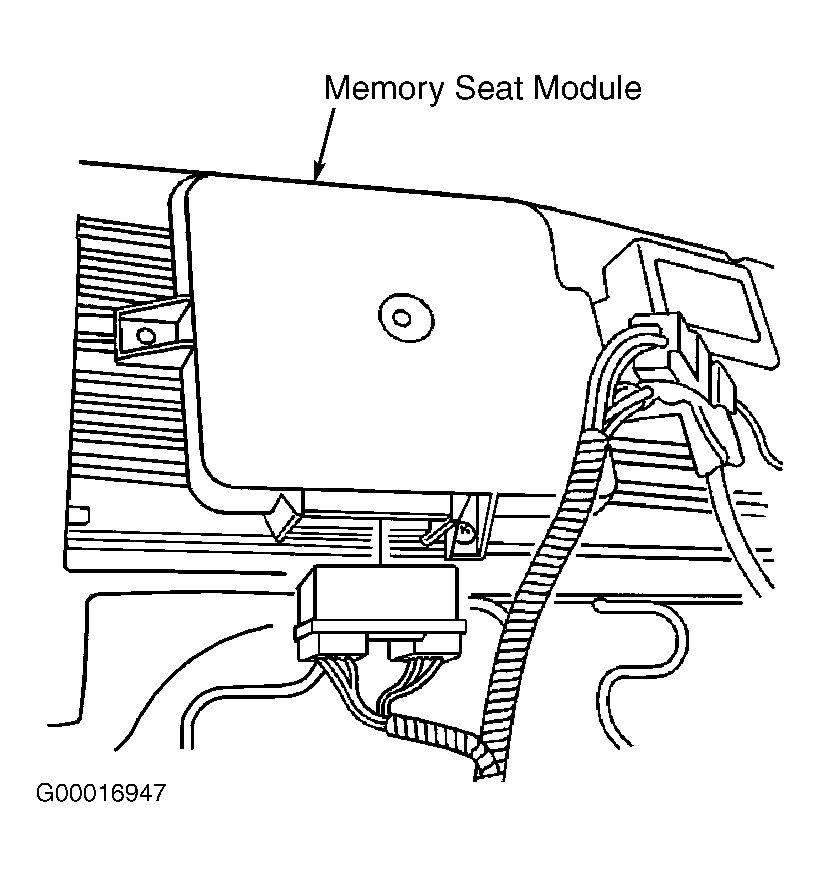

Before proceeding, disable air bag system. See AIR BAG RESTRAINT SYSTEMS - DEVILLE, ELDORADO & SEVILLE. Move seat to full forward position. Remove seat track retainer bolt adjuster covers and seat track retainer bolts. Move seat to full rearward position. Remove front seat track cover and recline seat back fully rearward. Tilt seat forward and disengage front mounting points from the floor. Disconnect electrical connectors and remove seat from the vehicle. Disconnect memory seat module electrical connectors. Drill rivets retaining memory seat module to seat and remove. See Fig 1 . To install, reverse removal procedure.
