2000 Cadillac Seville STSFACTORY OEM SERVICE PROCEDURE
Removal & Installation

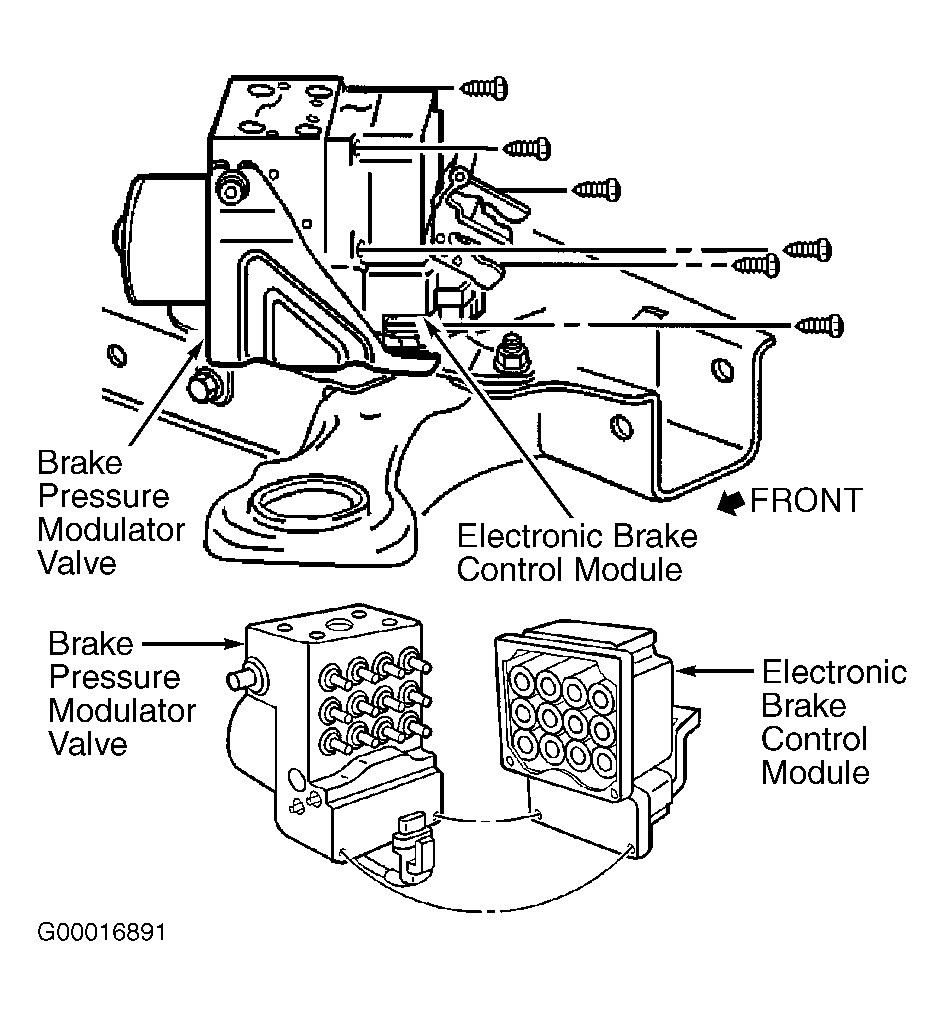

- Raise and support vehicle. Remove left front wheel and left front splash guard. Remove left air injection pump to gain access to Electronic Brake Control Module (EBCM). See Figure .
- Rotate EBCM connector tab up to unlocked position. Remove connector position assurance from EBCM connector and disconnect. Disconnect Brake Pressure Modulator Valve (BPMV) pump motor connector from bottom of EBCM.
- Remove 6 screws attaching EBCM to BPMV and separate EBCM from BRMV. See Fig 1 . To install, reverse removal procedure.
