Installation Procedure

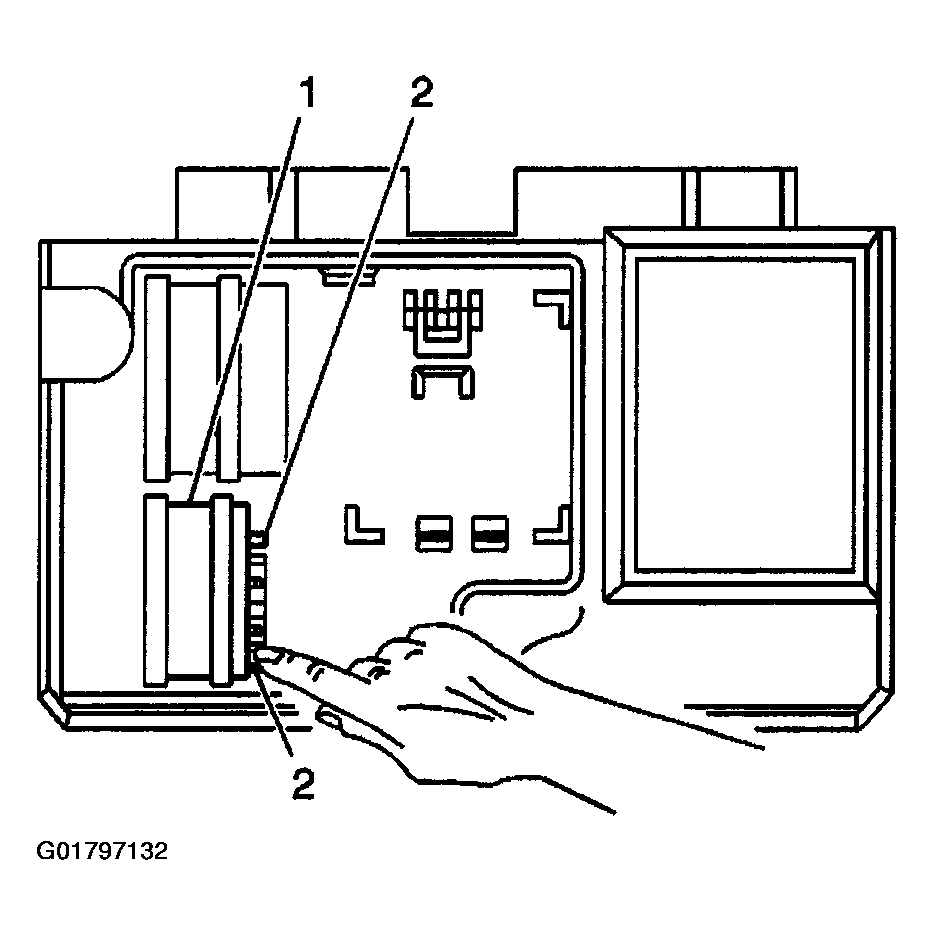

- Install the RIM (1) to the electrical component mounting panel.
- Push the RIM (1) into the opening on the electrical component mounting panel, until an audible click is heard, indicating the Rim (1) is secured to the electrical component mounting panel.
- Connect the electrical connections to the RIM (1).

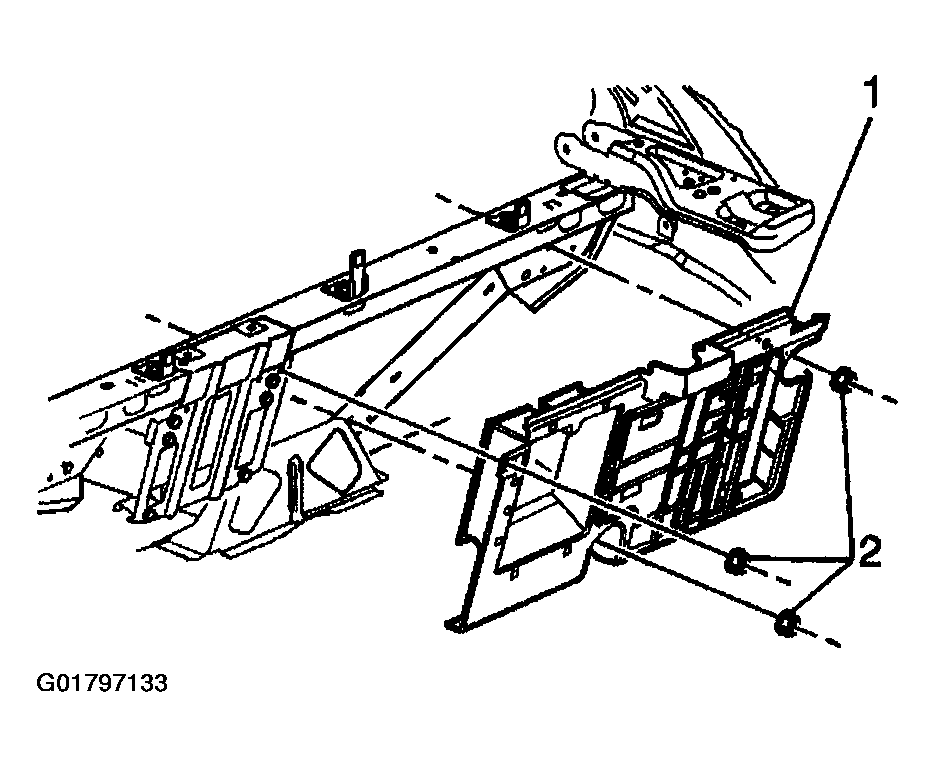

- Install the electrical component mounting panel (1) to the vehicle body.NOTE: Refer to FASTENER NOTICE .
- Install the electrical component mounting panel nuts (2).
Tighten
Tighten the nuts (2) to 9 N.m (80 lb in).
- Install the rear storage compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
- Restore the drivers personalization settings. Refer to DRIVER PERSONALIZATION .
