2000 Cadillac Eldorado ESCFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location | ||||||
|---|---|---|---|---|---|---|---|
| Accessory Time Delay Relay | Left Front Of Passenger Compartment, Taped To Body Harness | ||||||
| Controlled Power Relay | (1) In Truck Compartment Relay Center No. 3 | ||||||
| Courtesy Relay | (1) In Truck Compartment Relay Center No. 2 | ||||||
| Daytime Running Lights (DRL) Relay | In Engine Compartment Relay Center | ||||||

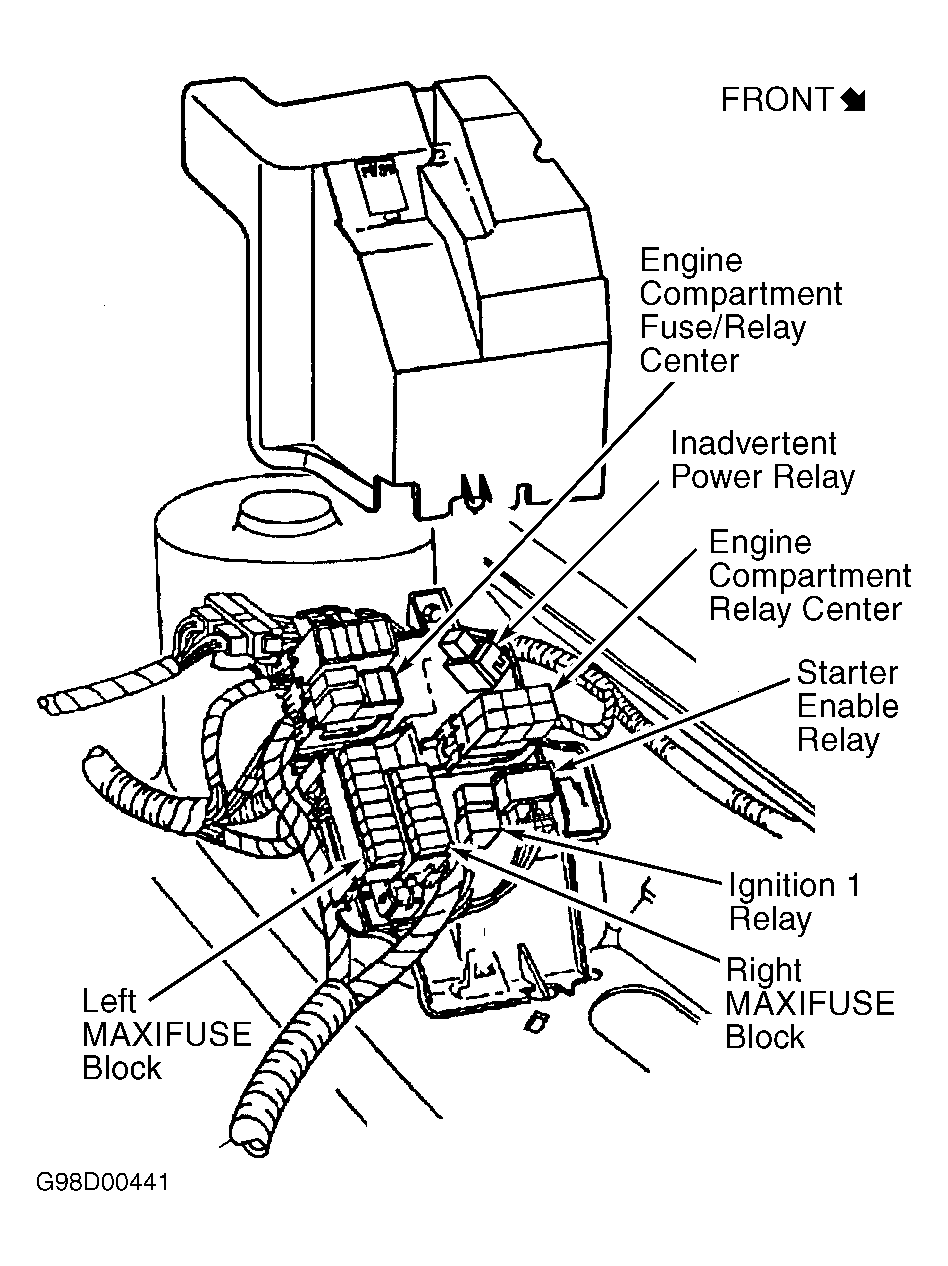

| Engine Compartment Fuse/Relay Center | (2) Left Side Of Engine Compartment, Near Strut Tower | ||||||
| Engine Compartment Relay Center | (2) Near Engine Compartment Fuse/Relay Center | ||||||
| Fuel Level Sensor | In Fuel Tank | ||||||
| Headlight Relay | In Engine Compartment Relay Center | ||||||
| Headlight Switch | Left Side Of Instrument Panel, Left Of Steering Column | ||||||
| HI/LO Beam Relay | In Engine Compartment Relay Center | ||||||
| Inadvertent Power Relay | (2) Above Engine Compartment Relay Center | ||||||
| Left & Right MAXIFUSE Blocks | (2) Near Engine Compartment Fuse/Relay Center | ||||||
| Park Relay | (1) In Truck Compartment Relay Center No. 5 | ||||||
| Parking Light Relay | (1) In Truck Compartment Relay Center No. 2 | ||||||
| Platform Zone Module (PZM)(3) | (1) Front Of Trunk Compartment, On Electronics Bay | ||||||
| Rear Compartment Lid Release Solenoid | On Rear Compartment Lid Latch | ||||||
| Reverse Light Relay | (1) In Truck Compartment Relay Center No. 5 | ||||||
| Trunk Compartment Fuse Block | (1) Front Of Trunk Compartment, On Electronics Bay | ||||||
| Trunk Compartment Relay Centers | (1) Front Of Trunk Compartment, On Electronics Bay | ||||||
| Trunk Tamper Switch | On Trunk Compartment Lid Latch | ||||||
|
|||||||
