Dash Integration Module

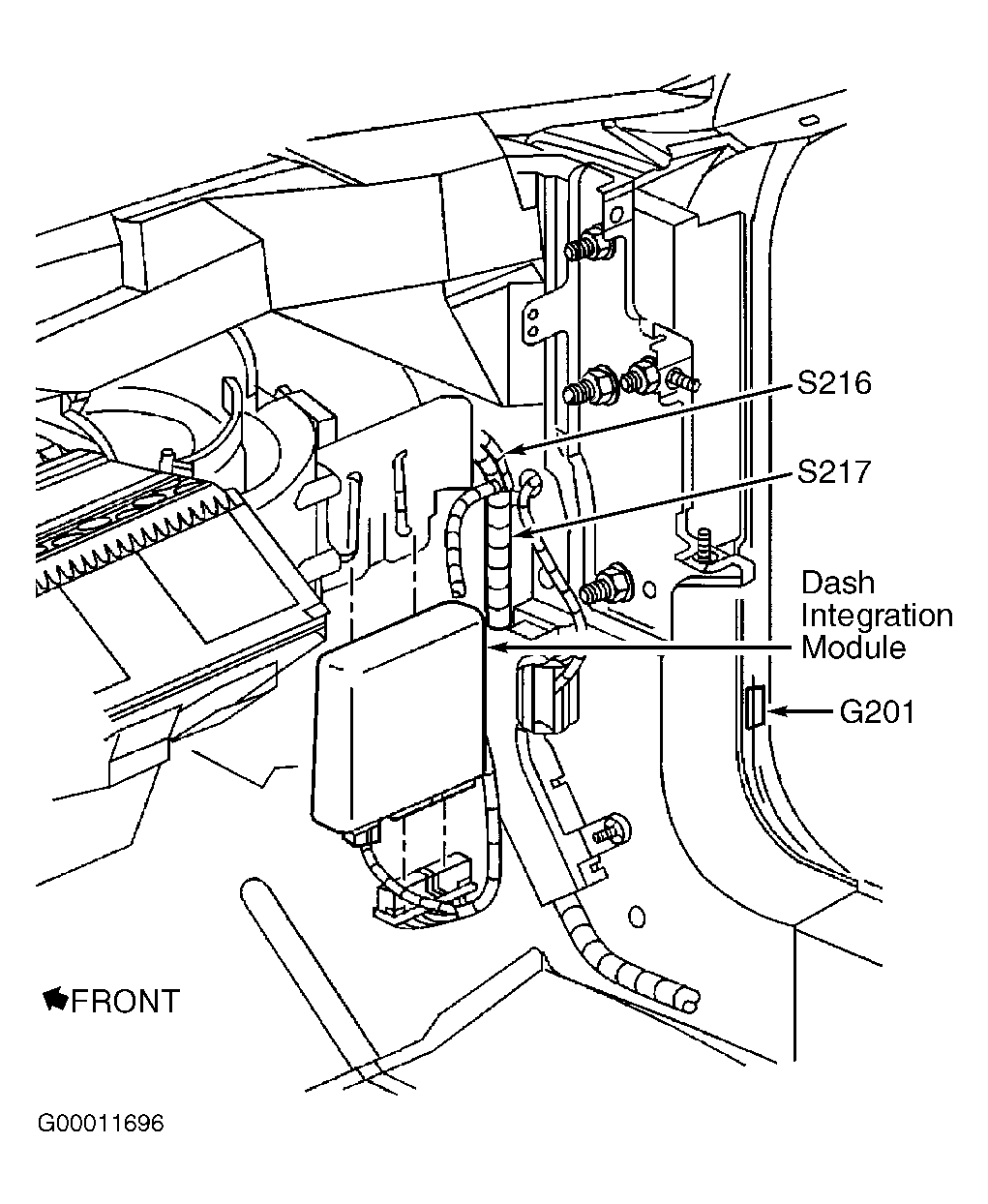

The Dash Integration Module (DIM) is located under right side of instrument panel. See Fig 1 . DIM controlled functions include power moding control (ignition switch states) over Class 2 serial data line, control of headlights, front foglights, exterior lights, interior lights dimming, steering wheel controls, horn relay control for theft activation, Lamps On signal for wiper/washer and low side temperature for HVAC compressor.
