COMPONENT LOCATIONS

Component

Location

Body Control Module (BCM)

Mounted On Right "A" Pillar, Behind Trim Panel

Cellular Telephone

Center Console

Data Link Connector (DLC)

Left Of Steering Column

Door Lock Relay

Behind BCM

Electronic Control Module (ECM)

In Left Front Corner Of Engine Compartment, Above Battery

Fuel Tank Filler Door Lock Release Switch

Center Of Instrument Panel

Fuse Block

Under Left Side Of Instrument Panel

Headlight Relay (High Beam)

Left (K73) ⁽¹⁾

In Relay Box (Position No. 7)

Right (K132) ⁽¹⁾

In Relay Box (Position No. 9)

Horn Relay K63 ⁽¹⁾

In Relay Box (Position No. 8)

Low Beam Relay K131 ⁽¹⁾

In Relay Box (Position No. 4)

Multifunction Relay Module K134 ⁽¹⁾

Under Left Side Of Instrument Panel

Relay Box ⁽¹⁾

Under Left Side Of Instrument Panel, To Right Of Steering Column

Remote Control Door Lock Receiver (RCDLR)

On Left Side Of Rear Compartment

Parking Light Relay K130 ⁽¹⁾

In Relay Box Position No. 3)

Power Distribution Fuse Block

In Left Front Corner Of Engine Compartment, Mounted To ECM, Above Battery

Stoplight Switch

On Brake Pedal

Transmission Control Selector Switch

On Gearshift Lever

Wiper Motor

In Center Rear Of Engine Compartment

⁽¹⁾	See Fig 1 .

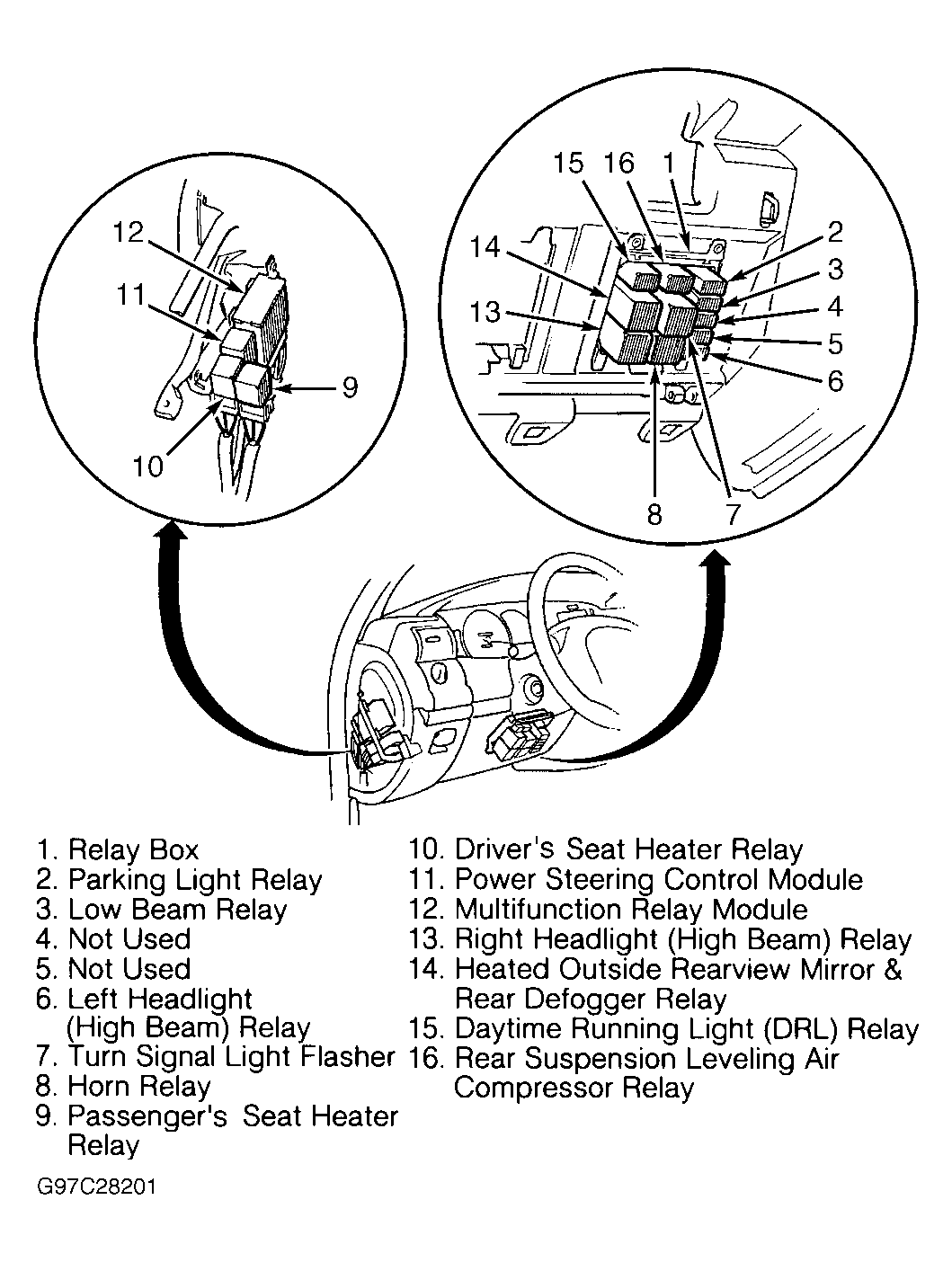

Fig 1: Locating & Identifying Relays

Courtesy of GENERAL MOTORS CORP.
