1996 Cadillac Seville STSFACTORY OEM SERVICE PROCEDURE

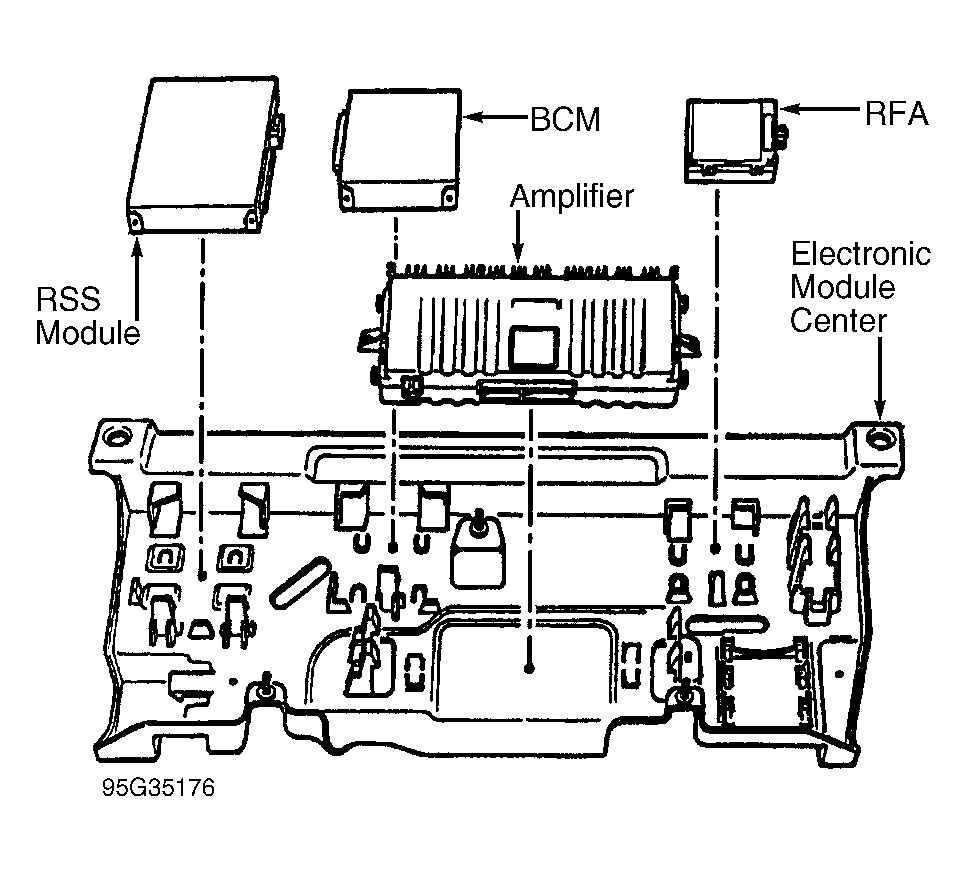

Body Control Module (BCM): Installation
- Install BCM and reconnect harness connectors. Install rear seat back and cushion. Install 10-amp COMFORT fuse in trunk compartment fuse block. Reconnect negative battery cable.
- Reprogram PZM override PZ S33 according to following values.
- K = Seville = 4
- Ksp = DeVille/Concours = 5
- Press and hold DEFROST and AUTO buttons on CCP until display flashes. Cycle ignition. Clear DTCs.
