1995 Cadillac Eldorado BaseFACTORY OEM SERVICE PROCEDURE

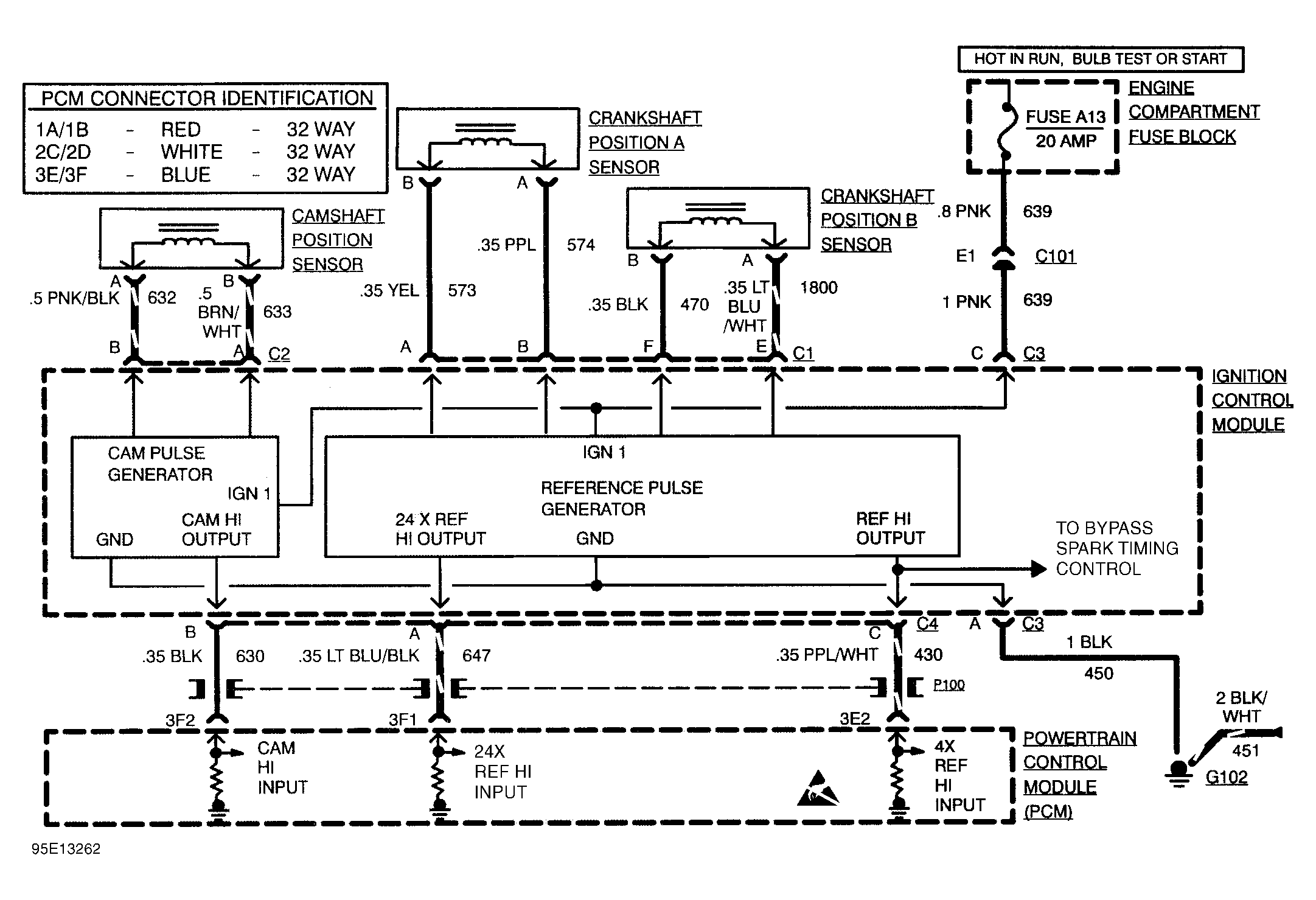

Code P025, 24X Reference Signal Low: Action
PCM turns on SERVICE VEHICLE SOON light message.
NOTE:
Test numbers refer to numbers on diagnostic chart.
- Checks to see if Code P035 is present because REF LO problem can cause other ignition problems.
- Checks ability of ignition control module to produce 24X reference pulses. If system is operating correctly, reading will be 200 Hertz or greater.
- Checks to see if ICM is providing PCM the proper 24X reference signal.
- Checks for open or short to ground in circuit No. 647.
