1993 Cadillac Eldorado V8-300 4.9LFACTORY OEM SERVICE PROCEDURE
Counterbalance Spring

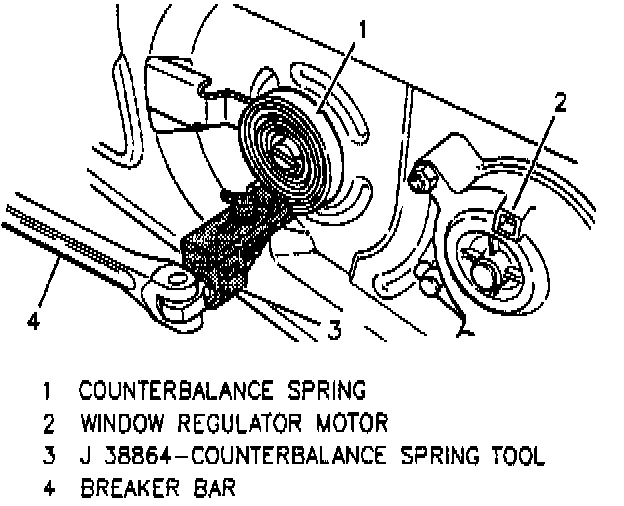

WINDOW REGULATOR COUNTERBALANCE SPRING
TOOL REQUIRED:
^ J 38864 Counterbalance Spring Removal and Installation Tool
REMOVE OR DISCONNECT
1. Door trim panel.
2. Water deflector.
3. Using tool J 38864 and a breaker bar, release spring from regulator.
INSTALL OR CONNECT
1. Spring using tool 3 38864.
2. Water deflector.
3. Door trim panel.
Removal Of Window Regulator Counterbalance Spring:
TOOL REQUIRED:
^ J 38864 Counterbalance Spring Removal and Installation Tool
REMOVE OR DISCONNECT
1. Door trim panel.
2. Water deflector.
3. Using tool J 38864 and a breaker bar, release spring from regulator.
INSTALL OR CONNECT
1. Spring using tool 3 38864.
2. Water deflector.
3. Door trim panel.
