1993 Cadillac Eldorado V8-300 4.9LFACTORY OEM SERVICE PROCEDURE
Remote Keyless Entry System - Operates Incorrectly
File In Section: 9 - Accessories
Bulletin No.: 43-90-24
Date: January, 1995
Subject:
Automatic Door Lock at Key Off and/or Remote Keyless Entry (RKE) System Functions Operating Incorrectly (Replace RKE Module)
Models:
1993-95 Cadillac Eldorado, Seville
1994-95 Cadillac Concours, DeVille
Condition
Owners may comment that some Remote Keyless Entry (RKE) system functions may not operate correctly.
Three conditions may occur:
1. Automatic doors lock when ignition switch is turned to the "OFF" position.
2. Trunk lid latch unlocks when it should not.
3. RKE transmitter does not activate the door locks, illuminated entry or trunk lid latch.

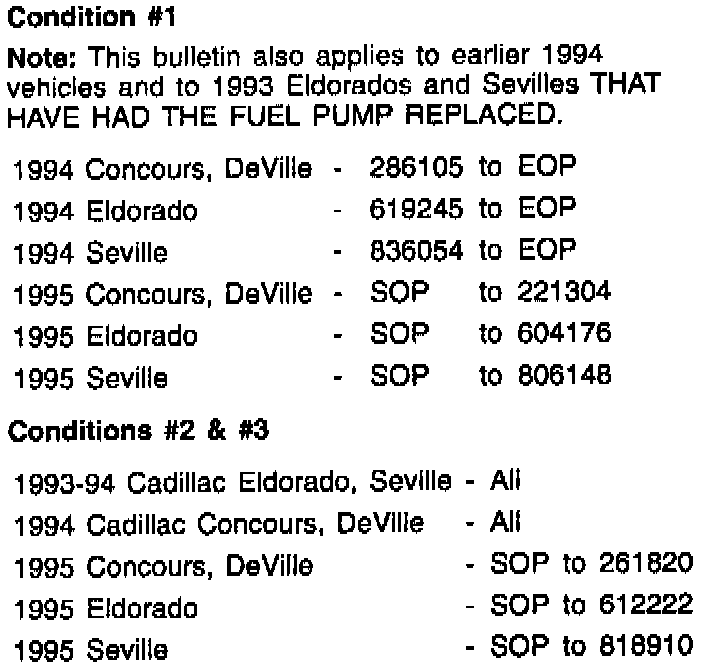

Vehicles Affected
CAUSE
Condition # 1
The fuel pump currently installed on the vehicles listed above may generate electrical transients which interfere with proper operation of the Remote Keyless Entry (RKE) module. The RKE module may respond to cause one or more of the conditions stated above.
Conditions # 2 and # 3
Outside noise interference near the frequency of the RKE transmitter (key fob) to receiver (RKE module) signal may cause these conditions. Software in the RKE receiver interpreted the noise as data, allowing the possibility of condition # 2 and/or # 3 to occur. An update to the software eliminated the unwanted conditions.
CORRECTION
To repair the above conditions, replace the RKE module with the following:
RKE module (Domestic*) - P/N 16215349 (With Date Code 05 or later)
RKE module (Export) - P/N 16215399
(*Includes Canada)
The RKE module date code is the left-most two digits of the number on the module connector.
Follow the module replacement procedure provided in Section 9K of the 1994 Service Manual. Refer to ON-VEHICLE SERVICE paragraph.
Note:
In 1995 model year, initial production of new RKE module, P/N 16215349, did not have the updated software described above. For those vehicles, replace RKE module, P/N 16215349, with service part RKE module, P/N 16215349, having Date Code 05 or later. The VIN breakpoints for vehicles with the new RKE module but old software in the module are as follows:
1995 Concours, DeVille - 221304 to 261820
1995 Eldorado - 604176 to 612222
1995 Seville - 806148 to 818910
Parts Information
Parts are currently available from GMSPO.

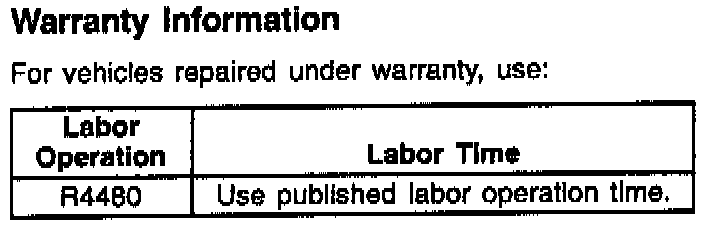

Warranty Information
Bulletin No.: 43-90-24
Date: January, 1995
Subject:
Automatic Door Lock at Key Off and/or Remote Keyless Entry (RKE) System Functions Operating Incorrectly (Replace RKE Module)
Models:
1993-95 Cadillac Eldorado, Seville
1994-95 Cadillac Concours, DeVille
Condition
Owners may comment that some Remote Keyless Entry (RKE) system functions may not operate correctly.
Three conditions may occur:
1. Automatic doors lock when ignition switch is turned to the "OFF" position.
2. Trunk lid latch unlocks when it should not.
3. RKE transmitter does not activate the door locks, illuminated entry or trunk lid latch.
Vehicles Affected
CAUSE
Condition # 1
The fuel pump currently installed on the vehicles listed above may generate electrical transients which interfere with proper operation of the Remote Keyless Entry (RKE) module. The RKE module may respond to cause one or more of the conditions stated above.
Conditions # 2 and # 3
Outside noise interference near the frequency of the RKE transmitter (key fob) to receiver (RKE module) signal may cause these conditions. Software in the RKE receiver interpreted the noise as data, allowing the possibility of condition # 2 and/or # 3 to occur. An update to the software eliminated the unwanted conditions.
CORRECTION
To repair the above conditions, replace the RKE module with the following:
RKE module (Domestic*) - P/N 16215349 (With Date Code 05 or later)
RKE module (Export) - P/N 16215399
(*Includes Canada)
The RKE module date code is the left-most two digits of the number on the module connector.
Follow the module replacement procedure provided in Section 9K of the 1994 Service Manual. Refer to ON-VEHICLE SERVICE paragraph.
Note:
In 1995 model year, initial production of new RKE module, P/N 16215349, did not have the updated software described above. For those vehicles, replace RKE module, P/N 16215349, with service part RKE module, P/N 16215349, having Date Code 05 or later. The VIN breakpoints for vehicles with the new RKE module but old software in the module are as follows:
1995 Concours, DeVille - 221304 to 261820
1995 Eldorado - 604176 to 612222
1995 Seville - 806148 to 818910
Parts Information
Parts are currently available from GMSPO.
Warranty Information
