1993 Cadillac Eldorado V8-300 4.9LFACTORY OEM SERVICE PROCEDURE
Engine Speed Signal

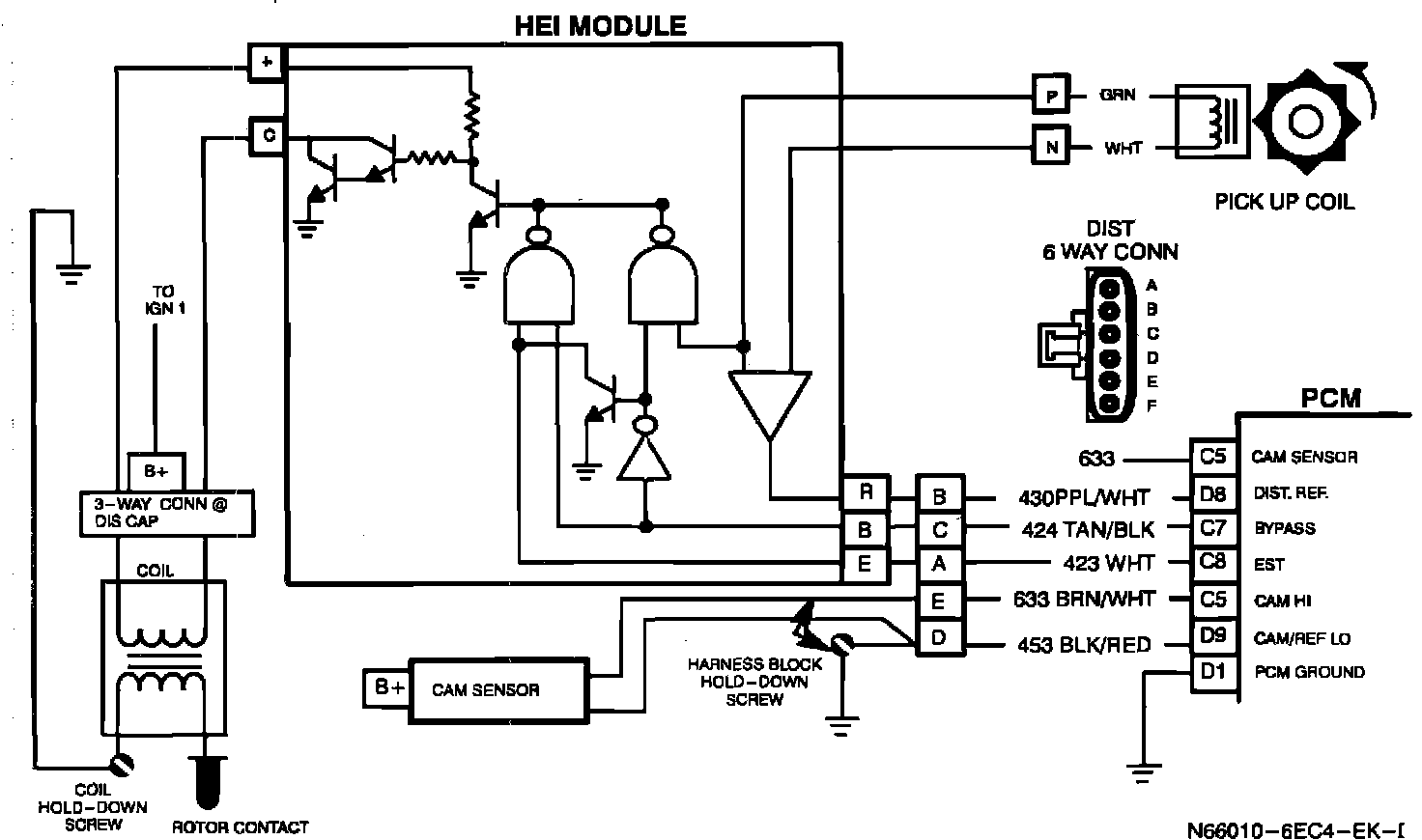

HEI Wiring Diagram:
The engine speed signal comes from a seven terminal High Energy Ignition (HEI) module in the distributor along CKT 430 (DIST REF). Pulses from the distributor are sent to the PCM where the duration between these pulses are used to calculate engine speed. The PCM adjusts spark advance and sends a signal back to the distributor.
