1993 Cadillac Eldorado V8-300 4.9LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch: Service and Repair
NEUTRAL START (PRNDL) SWITCH

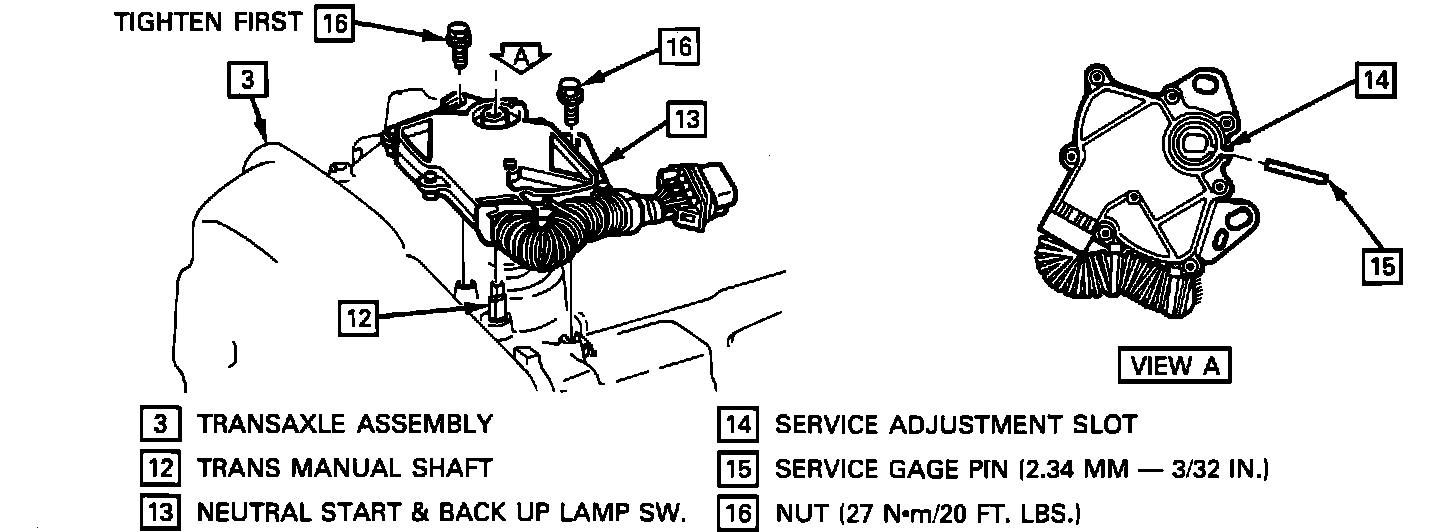

Neutral Start & Backup Lamp Switch - Removal And Adjustment:
REMOVE OR CONNECT
1. Air cleaner housing and duct.
2. Remove the shift linkage, electrical connector and vacuum hose.
3. Attaching nut and shift lever.
4. Fuel line bracket and bolt.
5. Bolts and switch.
INSTALL OR CONNECT
^ Switch and attaching bolts finger tight.
ADJUST
1. Place transaxle manual linkage lever shaft (#12) in the "NEUTRAL" position. Ensure proper shift control adjustment.
2. Rotate switch (#13) on shifter assembly to align service adjustment hole with carrier tang hole.
^ Insert 2.34 mm (3/32") max. diameter gage pin to a depth of 12 mm (15/32").
^ Tighten two adjusting screws (#16) to 27 Nm (20 lb ft).
3. Remove gage pin.
CAUTION: Personal injury may result if the engine can be started in a drive position.
NOTICE: When servicing requires that T-latch type wiring connector be disconnected, care must be taken to insure proper reassembly of the connector. Failure to do so may result in an intermittent failure of the switch.
