1993 Cadillac Eldorado V8-300 4.9LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch: Description and Operation

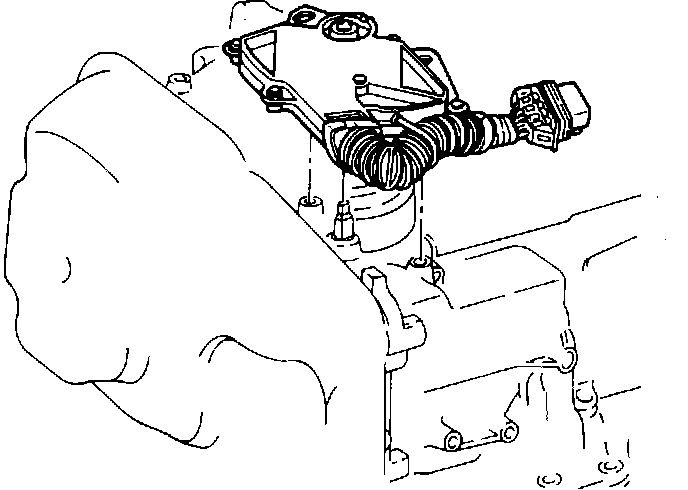

PRNDL-P/N Switch:

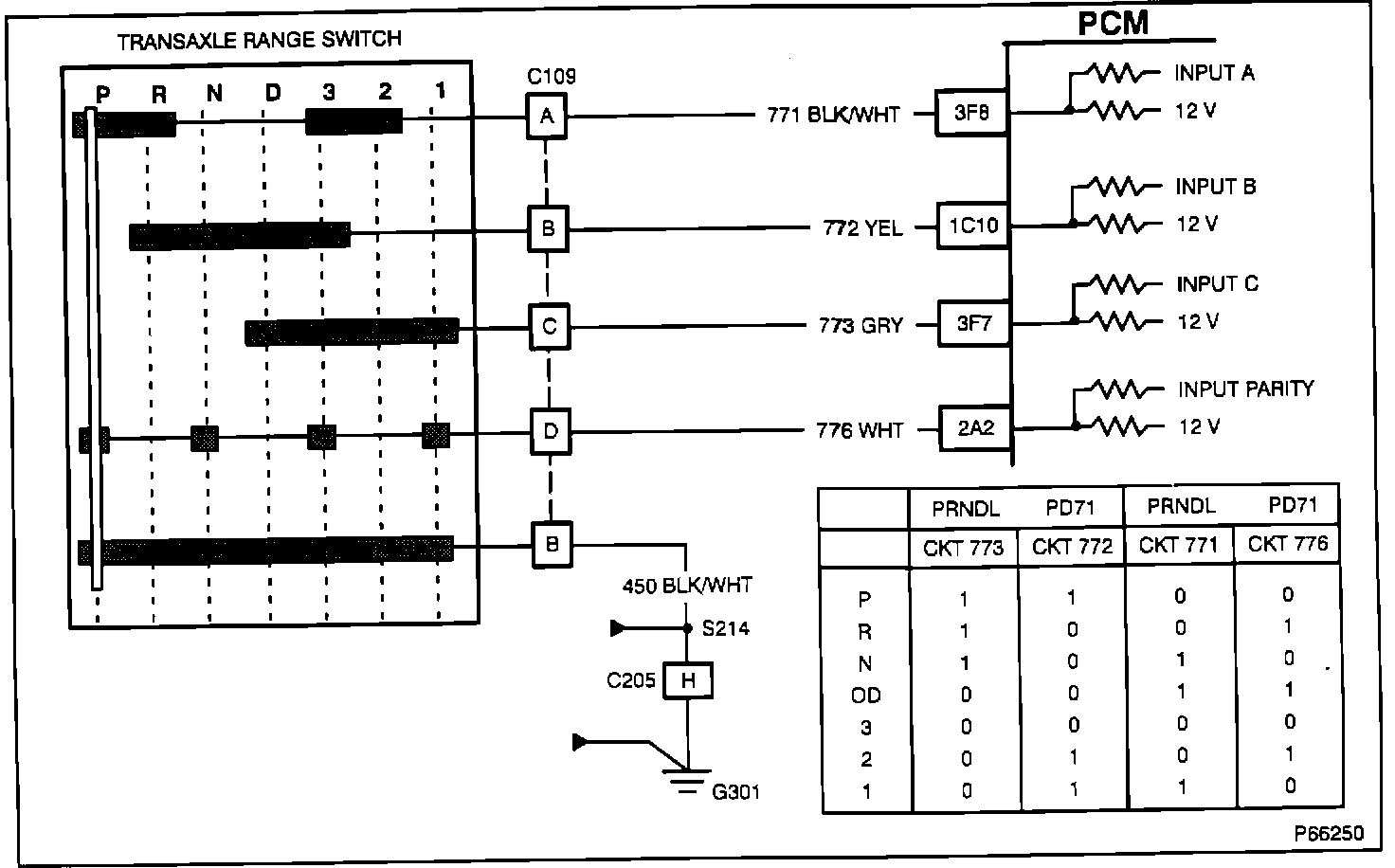

PCM Wiring:
The PRNDL switch is part of the transmission Neutral Safety-Back Up (NSBU) Switch, located on the top of the transaxle. The PRNDL switch provides four inputs to the PCM to indicate the transmission gear position. Gear position information is used by the PCM to control shift solenoids and TCC operation. Improper switch operation will cause PCM code P091 to set.
