1993 Cadillac Eldorado V8-300 4.9LFACTORY OEM SERVICE PROCEDURE
Relays
Non-Relay Circuit:

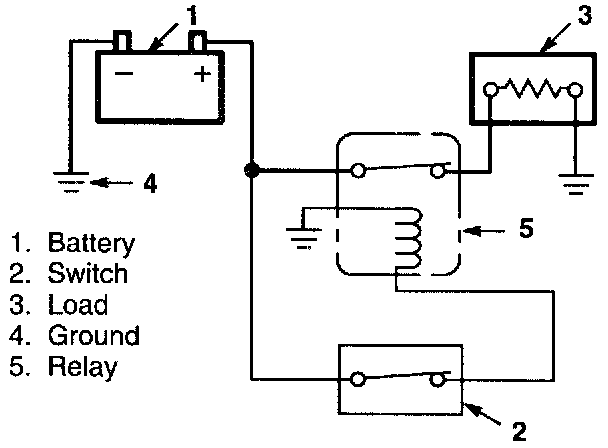

Relay Circuit:
Battery and load location may require that a switch be placed some distance from either component. This means a longer wire and a higher voltage drop. The installation of a relay between the battery and the load reduces the voltage drop, because the switch controls the relay, the switch can be compact.
