1993 Cadillac AllanteFACTORY OEM SERVICE PROCEDURE

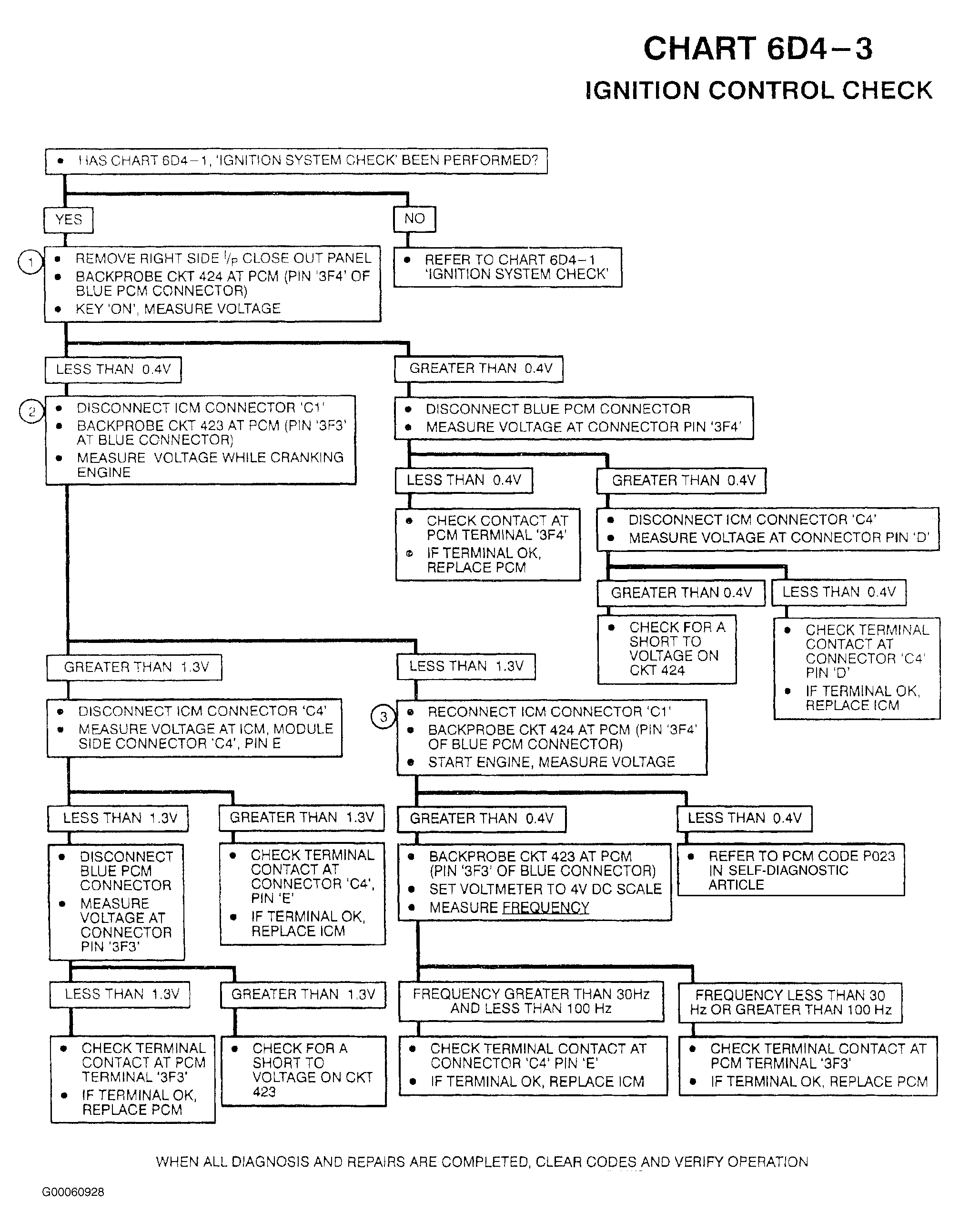

Notes On Fault Tree
NOTE:
Numbers in list refer to circled numbers in diagnostic flow chart.
- CKT 424 is the BYPASS circuit and should be low at key ON.
- CKT 423 is the IGNITION CONTROL circuit and should be low with the ICM not receiving crankshaft position sensor pulses.
- CKT 424, BYPASS circuit, should be high with engine running.
