1993 Cadillac AllanteFACTORY OEM SERVICE PROCEDURE

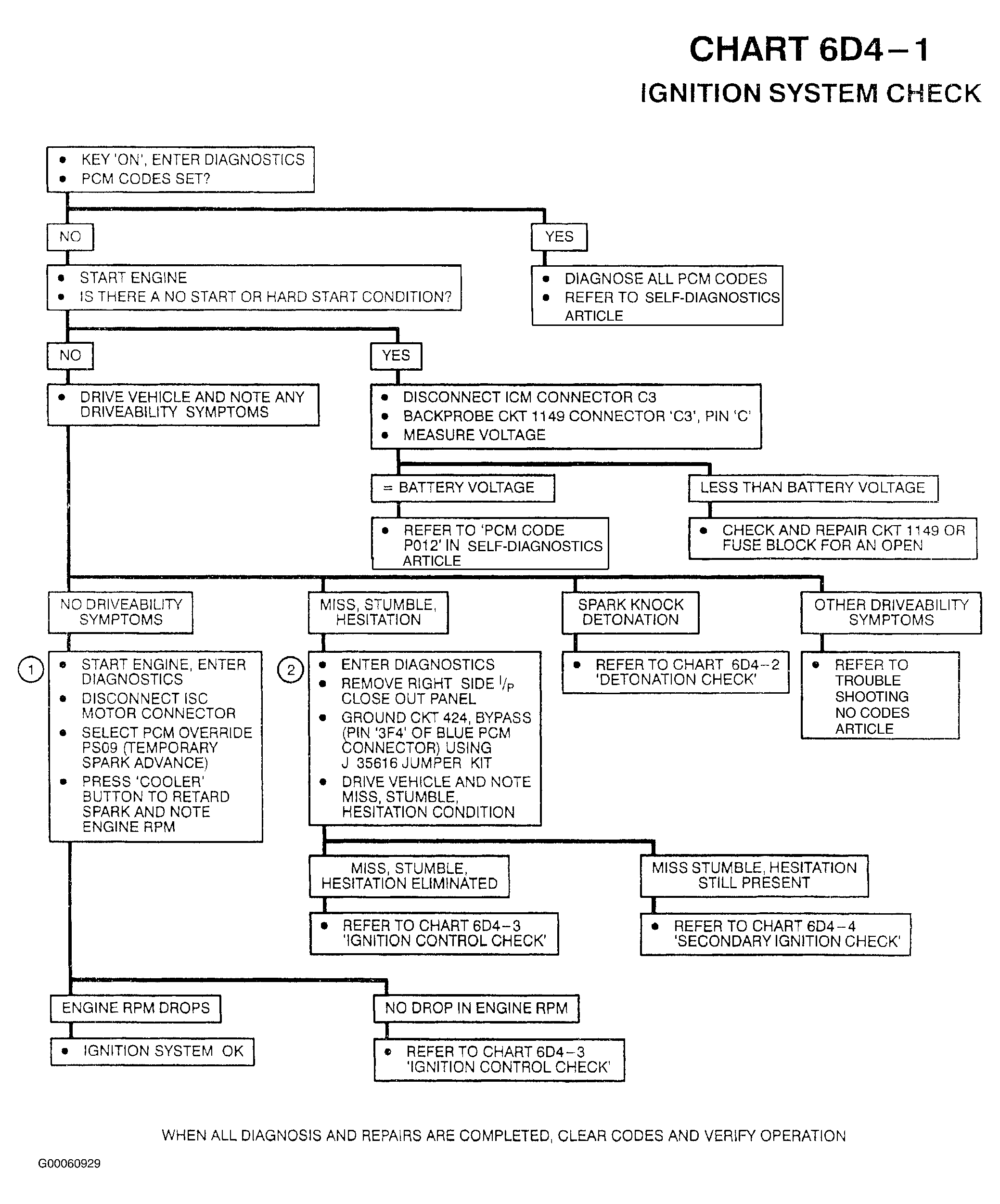

Notes On Fault Tree
NOTE:
Numbers in list refer to circled numbers in diagnostic flow chart.
- This procedure reduces spark advance. Engine RPM should drop as spark is retarded.
- Enter diagnostic before grounding CKT 424. This procedure grounds the BYPASS circuit and causes the ignition to operate in MODULE MODE. Being in diagnostics will prevent a code (Code 23) from setting. Entering bypass mode will cause idle fluctuations and reduced engine power. Do not confuse this with the miss, stumble, hesitation condition.
