1993 Cadillac AllanteFACTORY OEM SERVICE PROCEDURE
Component Locations
NOTE:
For more information on component locations, including grounds, see 1993 ALLANTE
COMPONENT LOCATIONS article.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| A/C High Side Temperature Sensor | Rear Of Engine Compartment |
| A/C Low Side Temperature Sensor | Rear Of Engine Compartment |

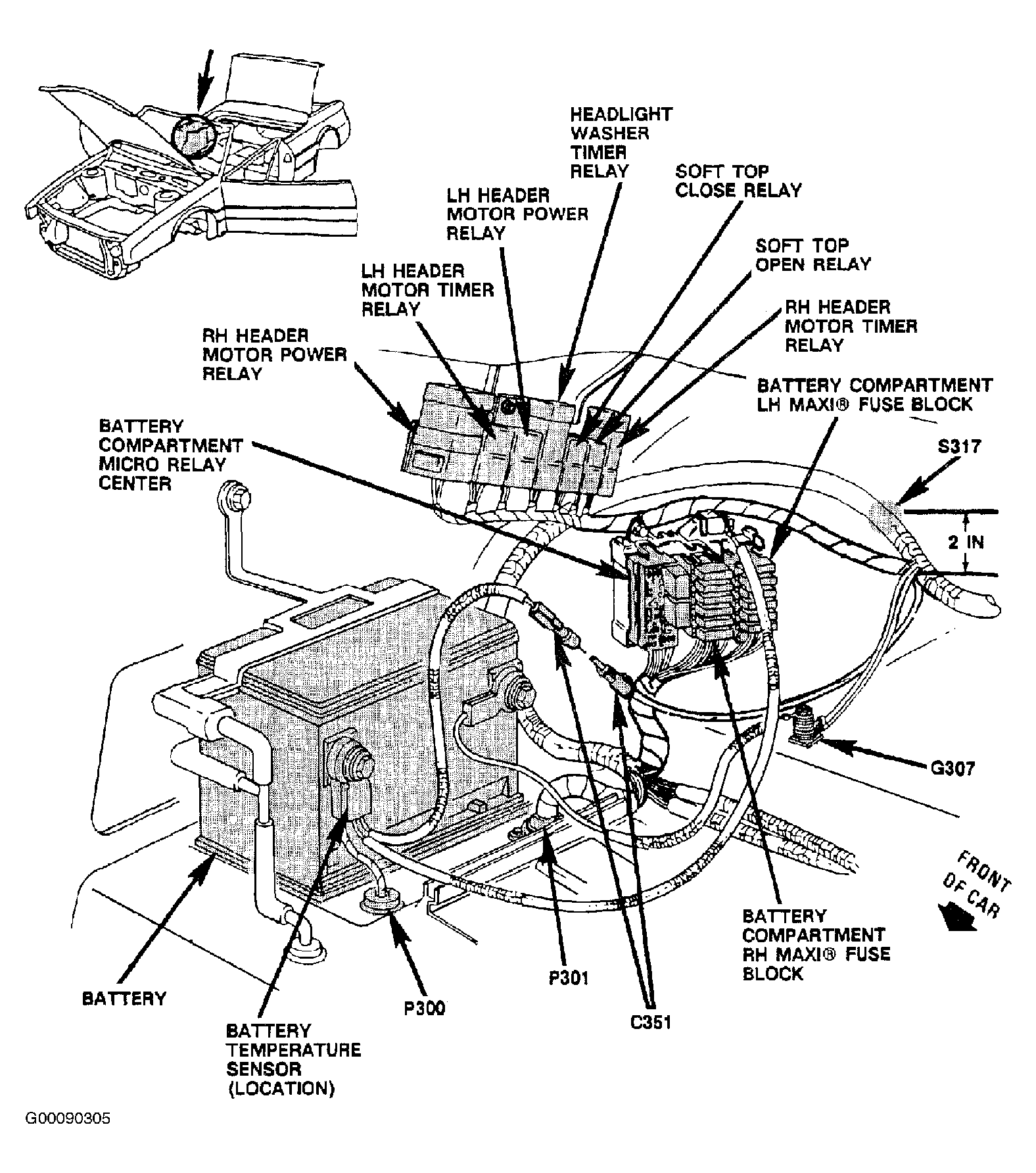

| Battery Compartment Micro Relay Center | Behind Passenger Seat, On Quarter Panel. See Fig 1 . |
| Body Computer Module (BCM) | Front Of Console. See Fig 2 . |
| Data Link Connector (DLC) | At Left Kick Panel. See Fig 3 . |
| Diagnostic/Energy Reserve Module (DERM) | Above Brake Pedal. See Fig 4 . |
| In-Car Temperature Sensor | Center Of Instrument Panel |
| Heater & A/C Programmer | Behind Right Side Of Instrument Panel. See Fig 5 . |
| Powertrain Control Module (PCM) | Behind Right Side Of Instrument Panel. See Fig 6 . |
| RAP Ignition 3 Relay | Center Of Console. See Fig 7 . |
| Sunload Sensor | Top Center Of Instrument Panel |
| Theft Deterrent Module | Behind Left Side Of Instrument Panel. See Fig 8 . |
| Twilight Photocell | Top Center Of Instrument Panel |
| Vehicle Speed Sensor | Lower Rear Of Engine. See Fig 9 . |
| Wheel Speed Sensor | Right Front Wheel House (Left Side Similar) |
