These tests assume a shift light problem exists. Use this procedure only if the light will not illuminate, or illuminates all of the time.
Turn ignition on, with engine off. Note shift light. Shift light should not be on. If light is on, check for a short to ground between the bulb and the ECM, or a bad ECM. See Fig 1 .
With ignition on and engine off, ground test terminal of ALDL connector. SERVICE ENGINE SOON light should start to flash and shift light should come on. If light comes on, go to next step. If SERVICE ENGINE SOON light does not flash, perform DIAGNOSTIC CIRCUIT CHECK in BASIC TESTING article in this section.
If shift light does not come on, ground Tan/Black wire at appropriate ECM terminal using a jumper wire. See SHIFT LIGHT CIRCUIT IDENTIFICATION . If light still does not come on, check for blown GAUGES fuse (AIRBAG fuse on Corvette), blown bulb or open circuit between fuse and ECM. If light comes on when grounding terminal with a jumper wire, problem is a bad ECM connection or bad ECM.

SHIFT LIGHT CIRCUIT IDENTIFICATION

Application	ECM Terminal
Seville	B7F

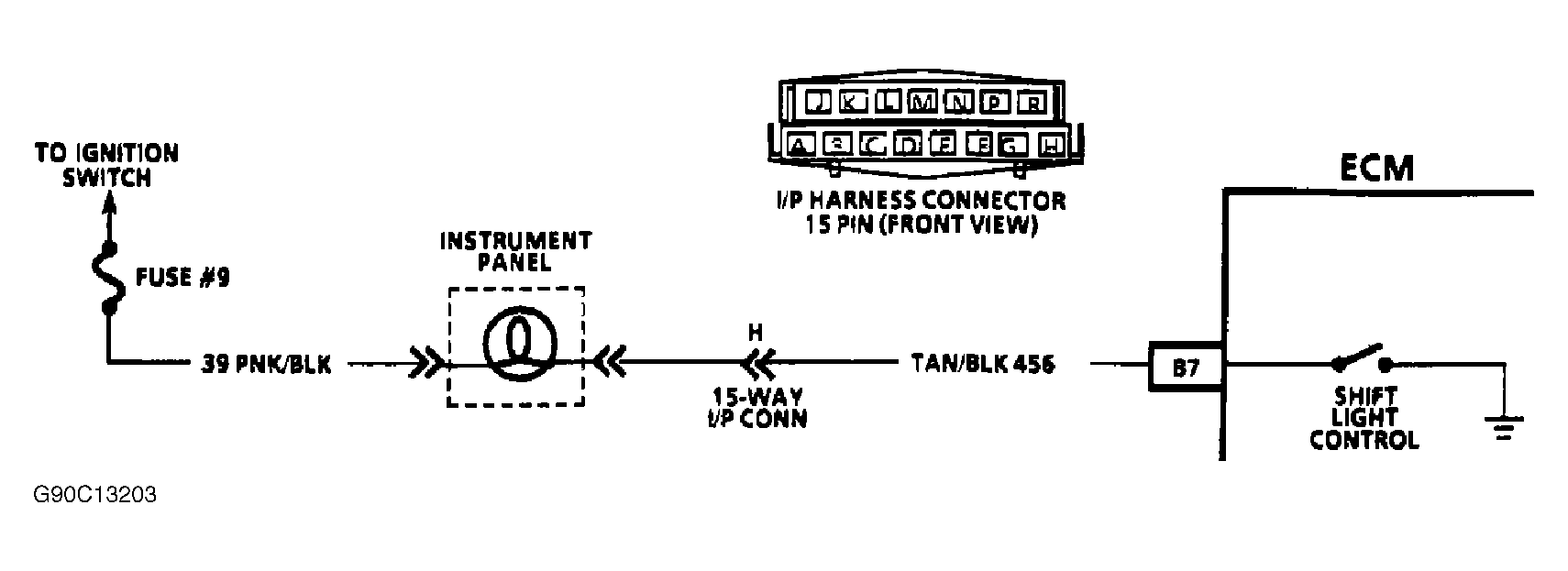

Fig 1: Shift Light Schematic

Courtesy of GENERAL MOTORS CORP.
