1991 Cadillac Seville BaseFACTORY OEM SERVICE PROCEDURE

Entering Self-Diagnostics

NOTE: The Electronic Climate Control (ECC) panel and Driver Information Center (DIC) make up the Climate Control Driver Information Center (CCDIC). See Fig 1 .

Turn ignition on. Simultaneously push OFF and WARMER buttons on ECC panel. See Fig 1 . Continue to push OFF and WARMER buttons until the segment check appears on the Instrument Panel Cluster (IPC) and CCDIC (approximately 3 seconds). See Fig 1 and Fig 2 .

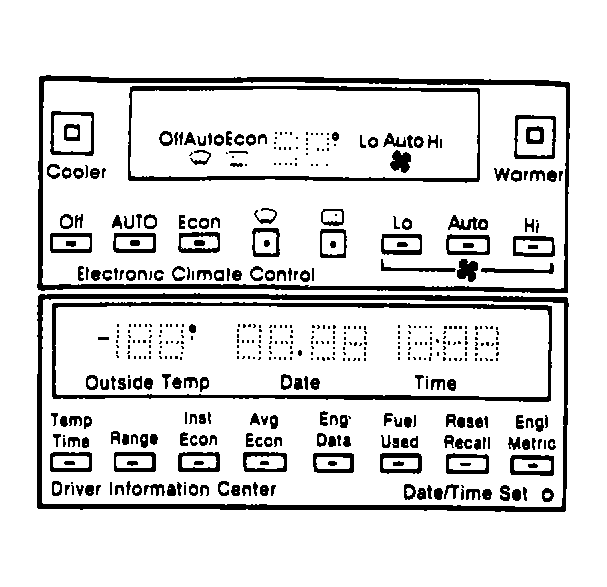

Fig 1: Climate Control Driver Information Center (CCDIC)
Courtesy of GENERAL MOTORS CORP.
